    Binder Jetting Breakthroughs: How 2022-2025 Set the Stage for an Industrial Upswing


    1.Background

    In 2022, an aircraft-engine OEM installed a small binder-jetting cell to shorten the weeks-long casting cycle for prototype turbine blades. Three years later, that “experimental” corner of the factory has matured into a full-blown micro-foundry punching out hundreds of nickel-alloy parts each month. The transformation is emblematic of binder jetting’s quiet—but relentless—rise between 2022 and 2025.

    Why Now?

    • Speed Pressure Post-pandemic supply chains still wobble; manufacturers have embraced “make to order” just to stay afloat. Binder jetting (BJAM) delivers layer times three-to-five times faster than fusion-based processes, turning urgency into a competitive edge.
    • Cost & Energy Because BJAM prints at room temperature, there is no energy-hungry laser or electron beam—and virtually no residual-stress scrap. Lower electricity bills and higher first-pass yields arrive as a two-for-one.
    • Geometry Freedom The loose powder bed supports every overhang and lattice; engineers can design fluid channels, thin-wall shells, or topology-optimised structures without a single support pillar.
    • Material Leap With the 2024 introduction of Desktop Metal’s PureSinter furnace, challenging alloys such as Al 6061 and titanium can be sintered repeatably, unlocking aerospace-grade components at BJAM economics.
    Diagram illustrating the binder jetting process, showcasing key components including the inkjet printhead, powder supply, leveling roller, and powder bed.
    Binder droplets cure in real time, fusing a fresh powder layer.

    A Brief Timeline

    DecadeKey MilestoneImpact
    1990sMIT invents binder jetting; ExOne commercialises first systemsNiche prototyping in ceramics and sand
    2010sFull-colour gypsum models & foundry cores dominate perceptionMetals remain largely experimental
    2022-2025Eco binders (≤ 32 % less benzene), bimodal ceramic powders, 50 µm printheads, Live Sinter® AIProduction-grade metals, ±0.25 % dimensional accuracy, ESG gains

    Strategic Significance

    A manufacturer who ignores BJAM today risks:

    1. Missing ESG Targets Low-VOC binders and ambient-temperature printing slash both emissions and energy per part.
    2. Strangling Design Innovation Support-free printing removes many of the geometric shackles that still bind casting, forging, and machining.
    3. Losing the Clock Speed War When competitors quote lead-times in days, a tooling-bound shop quoting weeks simply won’t win the bid.

    The Road Ahead

    This series will peel back each layer of the technology—binder chemistry, powder engineering, hardware-software coupling, front-line research, and business cases—to show how BJAM is maturing into a production tool. Next, we dive into the stage-setting role of materials and chemistry, as critical as the very first droplet that lands on a fresh powder bed.


    2. Materials & Chemistry: The Engine Room of BJAM’s Evolution

    Binder-jetting succeeds—or fails—at the molecular scale. Every droplet of binder must wet, diffuse, and polymerize just enough to knit powder particles together, yet still burn away cleanly during sintering. Likewise, every particle of powder must pack densely, flow predictably, and survive thermal cycles without warping the part. Between 2022 and 2025, three interlocking advances—greener binders, engineered powders, and smarter post-processing—have elevated BJAM from “interesting” to “industrial.”

    2.1 Binder Chemistry: From Glue to High-Function Resin

    Binder GenerationKey Resin FamilySignature BenefitTypical Use CaseRemaining Challenge
    Gen-1 (≤ 2018)Phenolic & furanCheap, strong “green” strengthSand cores for iron castingHigh VOCs, brittle residue
    Gen-2 (2022)Modified furfuryl25-32 % lower benzene & VOCs¹Low-emission foundry moldsSlightly higher cost
    Gen-3 (2023)Acrylic-epoxy hybridsLow-temp cure (< 120 °C) ⇒ smaller thermal gradientsThin-wall Al & Cu partsMoisture sensitivity
    Gen-4 (2024)Reversible oligomer gels²Temporary strength → depolymerises during debindFine-feature ceramicsIP still under patent review

    Key breakthroughs

    • Low-VOC furfuryl resins (2023). Bobrowski et al. demonstrated that tweaking the hydroxymethyl content cuts benzene outgassing by almost a third during mold burnout—critical for hitting foundry ESG targets.
    • Low-temperature acrylics. Lower cure temperatures mean the binder cross-links without inducing thermal shock in oxide-prone powders such as Al 6061.
    • Reversible binders. A 2018 patent (granted 2024) describes oligomers that “zipper” together during printing, then unzip during debinding, leaving virtually zero carbon residue—gold for high-purity ceramics and electronics substrates.

    Why it matters: The shift from “just hold the powder” to “enable the final property” re-frames binder R&D as a strategic lever. Engineers can now spec binders for outgassing, cure window, or even electrical conductivity (via carbon-loaded binders under development).

    2.2 Powder Engineering: Densification Without Complication

    2.2.1 Bimodal & Multimodal Distributions

    Mixed sizes, tighter packing. Shahed et al. (2025) blended 5 µm and 20 µm alumina to trim packing-density variation by 7.65 %, boosting fired density and flexural strength. Similar bimodal recipes are being trialled for Ni-superalloys (8 µm + 25 µm) to suppress shrink-macrosegregation during sintering.

    2.2.2 Reactive Metals Come of Age

    Titanium, magnesium, and aluminum long terrified factory EHS teams—one stray spark and a powder bed can flash. The 2024 Reactive Safety Kit pairs ATEX-rated enclosures with active O₂ monitoring and inert-gas powder loops. Result: Airbus suppliers now binder-jet Ti-6Al-4V brackets with < 0.01 wt % oxygen pickup and tensile properties within 5 % of wrought bar.

    2.2.3 Pre-Treated & Alloyed Powders

    • Gas-atomised Al 6061 from Uniformity Labs carries a nano-layer of proprietary de-ox passivation, allowing sintering densification to > 99.5 % theoretical—once impossible for high-Mg aluminum.
    • Spherical copper flake blends achieve 98 % IACS conductivity after hydrogen sintering, unlocking BJ heat sinks and motor windings.
    Powder Class2022 Limitation2025 StatusEnabled Applications
    Al 6061Oxide skin blocked sintering≥ 99 % dense after PureSinterLightweight e-drive housings
    Ti-6Al-4VCombustion hazardATEX-safe kit → productionTopology-optimised aero brackets
    Fine alumina (d50 = 5 µm)Poor flowabilityBimodal blend flows & packsDental crowns, micro-fluidics
    Cu-Sn blendsPhase segregationIn-situ alloying during sinterBronze art & conductive bushings

    2.3 Post-Processing Intelligence: Closing the Loop

    A step-by-step illustration of the binder jetting additive manufacturing process, showcasing the stages from transferring CAD data to the finished element. The image includes seven numbered steps: 1. Transfer of CAD data, 2. Application of powder, 3. Selective addition of binder, 4. Lowering of the building platform, 5. Repeating steps 2-4, 6. Removal of unbound powder, and 7. Finished element, with corresponding graphics for each step.
    https://engineeringproductdesign.com/knowledge-base/binder-jetting/

    PureSinter™ Vacuum Furnace

    • One-step debind + sinter in a 15.8 L hot zone.
    • Triple-zone heating profile < ± 3 °C uniformity → warpage under 0.2 %.
    • “Ti-Tested” certification ensures vacuum integrity for reactive alloys; carbon content stays below ASTM Grade 5 limits.

    Live Sinter® Predictive Engine

    • Trains on empirical shrink maps and CT scans.
    • Generates voxel-level “negative” distortion; CAD is warped before printing so the real part snaps in.
    • Cut geometric iteration loops from 6–8 cycles to one or two for bracket-type parts.

    Sensor-Rich Powder Beds

    • 8-kHz surface profilometry flags streaks or agglomerates > 10 µm in real time.
    • Binder-saturation imaging measures droplet spread to ± 2 %.
    • Data feed into a Bayesian adjustment loop: binder volume and layer height are tweaked mid-build, pushing first-pass yield toward 95 + %.

    2.4 Emerging Chem-Mat Frontiers

    1. Bio-derived Binders & Powders – Rice-husk silica and lignin-based resins promise carbon-negative feedstocks.
    2. In-situ Phase Change Binders – Jetting low-melting metal salts that become part of the alloy matrix, skipping infiltration.
    3. Functionally Graded Droplet Control – Dual printheads alternating binder rheologies create localised porosity for thermal management.
    4. Machine-Learning Binder Design – Generative models propose novel monomer structures judged on cure kinetics, viscosity, and ecotoxicity before a chemist ever steps into the lab.

    Take-home for Practitioners:
    Binder jetting chemistry is no longer an afterthought. Selecting the right binder–powder–furnace triad is as critical as tool steel choice in machining. As you scope your next AM project:

    • Match binder VOC profile to your plant’s emissions cap.
    • Run packing-density simulations—bimodal may beat unimodal by double-digit percentages.
    • Budget for real-time sensing; process data will pay back in scrap avoidance faster than any CAPEX spreadsheet predicts.

    Next up, we’ll dissect hardware and software innovations—how 50 µm printheads, dual recoaters, and AI-driven compensation have pulled binder jetting into the precision league.



    3. Hardware & Software Innovations: Turning Powder Beds into Production Lines

    Binder jetting is sometimes framed as “just ink-jetting glue onto powder.” In reality, 2025-era BJAM platforms look more like miniature fabs: multi-axis motion, sensor lattices running at kilohertz frequencies, edge AI chips crunching terabytes of build data, and furnaces that know the diffusion coefficients of every alloy they see. This section unpacks the intertwined hardware breakthroughs and software intelligence that have shifted binder jetting from prototype to production.


    3.1 Motion & Mechanics: From Single-Pass to Smart-Recoater Architectures

    Capability2022 Baseline2025 State-of-PracticeWhat Changed?
    Layer time (metals)15–20 s4–7 sDual recoaters, segmented gantries, FPGA-driven motion planning
    Z-height uniformity± 40 µm± 10 µmClosed-loop optical profilometry adjusts blade angle in real time
    Build volume200 × 100 × 100 mm typicalUp to 800 × 500 × 400 mm (EASYMFG M400Plus)High-torque ball-screws, lightweight stiff frames
    Hybrid build zonesN/AMetal + ceramic in adjacent zones (Addimetal K2-2)Independent temp/humidity micro-climates
    A binder jetting system featuring a robotic arm, conveyor belt, and several green sand molds with intricate designs, highlighting an automated manufacturing process.
    https://techstory.in/desktop-metal-receives-its-second-order-of-binder-jet-additive-manufacturing-systems/

    Key breakthroughs

    • Segmented recoaters – Instead of one long blade, machines like EASYMFG’s M400Plus use three independently actuated segments. If the center segment detects drag, it lifts 30 µm while the outer segments continue. Net effect: no streaks, no pause.
    • High-g accelerations – Carbon-fiber carriage beams and servo loops clocked at 2 kHz let printheads accelerate at > 10 m/s², sustaining 300 mm/s scan speeds without ringing.
    • Vibration cancellation – Piezo shakers in the frame inject counter-phase pulses, cancelling floor-borne vibration; crucial for < 60 µm metal droplets.

    3.2 Printhead Physics: Droplets, Dot Gain, and Data Rates

    Rule #1: A binder droplet must land where you told it and stay as big as you predicted.

    3.2.1 50 μm Droplet Generation

    • Next-gen piezoelectric nozzles fire 30 kHz bursts of 2–3 pL droplets → theoretical 1,200 dpi in X/Y.
    • Drive waveforms are dynamically tuned per droplet using feedback from MEMS pressure sensors inside the manifold.

    3.2.2 Dot-Gain Compensation

    Every powder has a “wicking curve.” Software now measures binder spread in-situ by back-lighting the layer and capturing edge expansion to ± 2 µm. The slicer compensates on the next layer—closing the loop in under 300 ms.

    3.2.3 Multi-Modal Jetting

    Addimetal’s K2-2 integrates two printheads: one standard binder, one nanoparticle-laden infiltrant. During a single pass the system can print a steel lattice and infiltrate copper into selected voxels—creating local heat-spreader “pixels” without post-infiltration.


    3.3 Powder-Bed Sensing & Actuation: The 8-kHz Reality Check

    1. Surface Profilometry – Line-scan lasers read surface height after each spread; any ridge > 10 µm triggers an automatic “micro-skive” pass.
    2. Thermal Imaging – IR cameras check for local temperature spikes indicating clogging nozzles (binder droplets generate exotherms while curing).
    3. Acoustic Emission – Ultrasonic microphones detect recoater-powder friction signatures; rising amplitude predicts bed compaction drift.
    4. Closed-Loop Correction – If sensors flag an error, the machine can:
    • pause and perform a targeted powder “heal,”
    • adjust binder volume on-the-fly, or
    • alter layer height for the next 10 layers to gradually re-level Z.

    Result: first-pass yield on production builds is trending toward 95 %+, a figure unimaginable even in 2021.


    3.4 Safety & Reactive-Metal Handling: From Scary to Standard

    Reactive metals—titanium, aluminum, magnesium—once required argon-flooded gloveboxes. 2024’s Reactive Safety Kits bring three building blocks into one turnkey enclosure:

    • ATEX Zone 22 certification – All motors, encoders, and sensors are sealed or purged; binder lines use non-sparking valves.
    • < 5 ppm O₂ inert loop – Closed-circuit argon recirculates through molecular sieves; automated leak-down tests run between jobs.
    • Explosion-vent panels – Should the worst occur, panels relieve to a ducted plenum, keeping the printer frame intact.

    Case study: A Tier-1 aerostructures supplier binder-jets Ti-6Al-4V brackets with build losses under 2 %, oxygen pickup < 0.01 wt %, and mechanical properties within 5 % of forged stock—validated by CT and tensile testing.


    3.5 Software Intelligence: From Slicer to Digital Twin

    Software Layer2022 Capability2025 LeapImpact
    Build prepRaster-slice; manual shrink scalingAI warp-comp (Live Sinter®)± 0.25 % accuracy, one-shot success
    Process monitoringBasic log filesEdge AI classifies defects in real timeStops scrap during build
    MES/ERP hooksCSV importOPC UA + RESTful APIsBJAM cell part of fully costed digital thread
    Predictive maintenanceManual nozzle checksBayesian life-models on printhead & recoater30 % reduction in unplanned downtime

    Digital Threads & Twins
    Every build file now contains: CAD, tool-path, sensor logs, and sinter profile. Post-build, CT scans merge into the twin; any customer-warranty claim can be traced voxel-by-voxel back to machine conditions in seconds.


    3.6 What Still Needs Work?

    • Furnace Bottlenecks – PureSinter retorts are 15.8 L; bigger builds still queue. Scalable “continuous belt” debind-sinter lines are in pilot but unproven for tight-tolerance aerospace parts.
    • Binder Supply Chain – High-function oligomer binders rely on specialty monomers with limited suppliers; price volatility looms.
    • Cross-Platform Standards – OPC UA adoption is uneven; mixing vendors in one cell can still break the data thread.
    • Field Calibration – 50 µm heads need weekly jet-drop verification; automated calibration rigs exist but add cost.

    3.7 Integration Playbook for Plant Engineers

    1. Map the Digital Thread First – Ensure your PLM/MES can ingest BJAM build logs natively; retrofitting later costs more than buying the right driver now.
    2. Bundle Sinter Capacity with Printers – Aim for sinter capacity ≥ 1.5× print capacity to avoid a post-print bottleneck.
    3. Invest in In-Situ Sensing – The extra 5–7 % CAPEX for high-speed profilometry often pays back in < 9 months via scrap avoidance.
    4. Plan for Reactive Metals Day 1 – Even if you start with 17-4PH steel, spec the room for ATEX; you’ll want aluminum inside a year.
    5. Train on Data, Not Just Mechanics – Operators should understand binder yield stress and AI defect-probability maps as fluently as they know torque specs.


    4. Research Frontiers & Patent Landscape: Where Binder Jetting Goes Next

    Binder jetting’s 2022-2025 growth spurt rests on concrete engineering wins, yet its long-term impact will be forged in laboratories, pilot lines, and the patent office. This section dissects four high-momentum research themes—sustainable feedstocks, multi-material & graded structures, AI-driven process intelligence, and in-situ alloy design—and maps them to active patents, technology-readiness levels (TRLs), and likely time-to-market.

    A person interacting with a touchscreen interface on an Addimetal K2-2 binder jetting machine.
    https://3dprintingindustry.com/news/addimetal-unveils-k-2-2-frances-first-metal-binder-jetting-3d-printer-at-formnext-2024-234486/

    4.1 Carbon-Smart Materials: From “Less Bad” to Net-Positive

    4.1.1 Bio-Derived Powders

    Rice-husk silica, almond-shell ash, even chitin sourced from seafood waste are being milled into ceramic or composite precursors. A 2025 MDPI preprint reports 98 % densification for a rice-husk–derived SiO₂/Al₂O₃ blend sintered at 1,250 °C—300 °C lower than conventional alumina.

    • Driver: ESG regulation + powder price volatility.
    • TRL: 3-4 (lab-scale coupon parts).
    • Key challenge: variability in ash chemistry; needs inline spectroscopy for batch normalization.

    4.1.2 Lignin-Based Binders

    Lignin—an abundant pulp-and-paper by-product—can be phenolated and mixed with low-viscosity acrylics to yield jettable resins. Gas-chromatography studies show a 40 % reduction in total VOCs versus classic phenolics, while green-strength remains within 5 % of baseline.

    • Patent watch: US 11,987,321 B2 (filed 2024) claims lignin-acrylic hybrids with reversible hydrogen bonding for clean debind.
    • Likely arrival: Foundry sand cores by 2026; metal BJAM adaptation ~2028.

    4.2 Multi-Material & Functionally Graded Parts

    In powder-bed fusion, multi-material typically means tool-changer gymnastics between layers. Binder jetting, by contrast, can switch chemistry voxel-by-voxel simply by firing a different droplet.

    4.2.1 Dual-Binder Jetting

    Addimetal’s K2-2 prototype demonstrated stainless-steel lattices co-printed with a copper-loaded binder into select voxels. During sintering, the copper infiltrates adjacent steel, forming local heat-spreader “pixels.” Early thermography shows a 55 % hotspot reduction in power-electronics substrates.

    • TRL: 5 (pilot parts in field test).
    • Standards gap: No ASTM spec yet covers heterogeneous infiltration in BJAM; committees are drafting WK86019.

    4.2.2 Gradient Density & Porosity

    Researchers at Oak Ridge National Laboratory (ORNL) have employed droplet-spacing modulation to tune porosity from 5 % to 45 % within a single Ti-6Al-4V part. Mechanical tests reveal 40 % weight savings with only a 10 % drop in stiffness for load-paths aligned to the gradient.

    • In-sinter correction: Live Sinter’s latest beta incorporates spatially varying shrink maps so gradients print true.
    • Application horizon: Biomedical implants (osseointegration) and jet-engine acoustic liners around 2027-2028.

    4.3 AI & Data-Centric Process Optimization

    Binder jetting is data-rich: every layer yields terabytes of height maps, droplet diagnostics, and infrared frames. The bottleneck is turning that data into prescriptive control.

    4.3.1 Generative Binder Design

    A multi-institution consortium (TU Munich, ExOne/DM, BASF) is training graph neural networks on 4,000+ binder formulations. Target metrics—viscosity, surface tension, cure kinetics, toxicity—feed into a Pareto optimizer. In blind validation the model proposed an epoxy-siloxane oligomer that cured 30 % faster at 90 °C than any compound in the training set.

    • TRL: 2-3 (computational).
    • Patent activity: Multiple provisional filings (not yet public) flagged via Espacenet watch.

    4.3.2 Real-Time Defect Prediction

    Edge AI chips now sit on the recoater gantry, processing acoustic and optical streams at 8 kHz. An ORNL paper (2024) reports a convolutional network that predicts layer-scale porosity with 92 % F1-score, enabling binder-flow adjustment by the next pass.

    • Value: Internal scrap rate on a 17-4PH impeller dropped from 12 % to 1.8 %.
    • Commercial rollout: Expected in Desktop Metal Production 2.0 firmware late 2025.

    4.3.3 Digital Twins for Sintering

    Live Sinter’s voxel-level twins already compensate geometry; the next frontier is phase-field sinter twins that forecast grain growth and micro-segregation. Early HPC simulations suggest Ti-6Al-4V grain-size variance could be cut in half with adaptive thermal profiles.


    4.4 In-Situ Alloying & Reactive Powder Blends

    Researchers are revisiting the age-old metallurgical dream: print two (or more) simple powders, let sintering do the alchemy.

    4.4.1 Cu-Sn → Bronze

    A 52 wt % Cu / 48 wt % Sn bimodal blend binder-jetted and sintered at 850 °C forms α+δ bronze with tensile strength of 380 MPa—12 % above cast C907.

    • Use case: Heritage art castings and antimicrobial surfaces.
    • Risks: Kirkendall porosity; mitigated by staged heating ramps.

    4.4.2 Fe-Al Intermetallics

    Japanese researchers (NIMS) spray-dry Fe₂O₃ and Al powders with a self-reducing binder; sintering in hydrogen creates Fe-Al intermetallics (κ-carbide) with high oxidation resistance.

    • Target: Exhaust manifold liners for hydrogen combustion engines.
    • TRL: 3 (coupon tests).
    • IP: JP 2024-138611 pending.
    Close-up view of multiple metallic components featuring intricate designs, possibly produced through binder jetting technology.
    https://tritechtitanium.com/technologies/3d-printing/

    4.5 Patent Heat-Map (2022-2025)

    YearPatent No.AssigneeFocusStatusComment
    2022US 11,542,109HP Inc.Dual-binder printhead architectureGrantedFoundation for color-metal BJAM
    2023CN 114774612EASYMFGSegmented recoater with active Z-correctionGrantedCore tech in M400Plus
    2024US 11,987,321BASF SELignin-acrylic hybrid binderGrantedEnables low-VOC metals
    2024JP 2024-138611NIMSSelf-reducing Fe-Al powder blendPendingHydrogen-fuel engine parts
    2025EP 4,119,977AddimetalMulti-material voxel-level infiltrationFiledK2-2 hardware underpinning

    4.6 Technology-Readiness & Market Timelines

    Research ThemeCurrent TRLCommercial Entry WindowEarly Adopters
    Bio-powders & Lignin binders3-42026-2028Tier-1 foundries, ESG-driven sand-core shops
    Dual-binder heat-spreaders52027Power-electronics, EV inverter suppliers
    AI-designed binders2-32028-2030Specialty resin firms, medical AM
    Real-time defect AI62025-2026Aerospace primes, precision pump OEMs
    In-situ alloying blends3-42027-2029Marine propellers, heritage bronze casting

    4.7 What This Means for R&D Leaders

    • Strategic Materials Budgeting Allocate 15-20 % of AM R&D spend to feedstock trials; powder chemistry will differentiate cost curves more than printer selection by 2028.
    • IP Foresight Set up automated patent scraping for binder chemistry and multi-material jetting—freedom-to-operate evaluations are cheaper in PowerPoint than in court.
    • Data Infrastructure Lab printers should stream full process logs into a version-controlled repository now; AI tools need thousands of builds to train models that matter.
    • Consortia Engagement Join ASTM WK86019 or ISO/ASTM 52950 working groups to shape standards before they dictate your validation costs.
    • Sustainability Metrics Start LCA baselines today; carbon-negative powders will lose their marketing luster if you can’t quantify cradle-to-gate savings.


    5. Application Strategies & Business Cases: Turning Lab Wins into P&L Impact

    Binder jetting has moved beyond proof-of-concept parts; the conversation in 2025 is firmly about profit and risk. This section gives engineering managers and CFOs an evidence-based playbook for deciding what to print, where to print it, and how to justify the capex. We break the analysis into five lenses: economic drivers, design tactics, supply-chain calculus, ESG arithmetic, and phased deployment roadmaps.


    5.1 Economic Drivers: Where the Numbers Tip in BJAM’s Favour

    5.1.1 Cost Stack Anatomy

    For a metal BJAM part the unit cost splits roughly as:

    1. Powder ≈ 35 % – trending down 8-10 %/yr as Al 6061 and Ti-6Al-4V volumes rise.
    2. Binder + Consumables ≈ 10 % – higher for oligomer gels; lower for legacy phenolics.
    3. Machine Depreciation ≈ 25 % – assumes five-year straight-line on a €750 k printer and €500 k furnace.
    4. Energy ≈ 8 % – 60-70 % lower than laser PBF thanks to room-temperature printing.
    5. Labour & QC ≈ 22 % – dominated by depowdering and sinter prep.

    Breakeven rule-of-thumb: At ≥ 5,000 parts/year BJAM beats five-axis CNC for geometries with > 30 % material removal or internal channels that require electrical discharge machining.

    5.1.2 Capex vs. Opex

    • Capex: A production cell (printer + PureSinter-class furnace + inert loop) lands between €1.1–1.4 million.
    • Opex: Powder reuse rate > 80 %, binder loss < 5 %, electricity 35–50 kWh/print. Comparative PBF energy is 140-180 kWh.
    • Payback: Aerospace supplier case shows 19-month payback after converting a 2-kg Ti bracket from 9-piece CNC/weld assembly to single-piece BJAM.

    5.2 Design-for-Binder-Jetting (DfBJ) Tactics

    1. Segment-and-Sinter Architectures – Break large housings into interlocking BJAM segments with diffusion-bond seams; sidesteps furnace volume limits.
    2. Shell-Core Strategy – Use low-density infill and dense skins (shell-thickness ≈ 2 mm). Result: 35 % weight cut and 25 % binder savings; ideal for casting cores and lightweight fixtures.
    3. Topology-Optimised Lattices – BJAM can print unsupported cellular cores; coupling nTopology or Ansys algorithms to Live Sinter shrink maps maintains ±0.3 % accuracy on struts ≥ 0.5 mm.
    4. Integrated Texturing – Jet non-wetting binder zones to create rough skin locally for adhesive bonding or osseointegration—no secondary grit-blast.

    5.3 Supply-Chain & Lead-Time Math

    ScenarioTraditional RouteBJAM RouteLead-Time Delta
    Sand Core for Engine BlockPattern print (4 days) → Core shot (1 day) → Cure (1 day)Direct sand BJAM (1 day)-67 %
    Al 6061 Bracket, 500 pcsDie-casting tool build (6 weeks) → Cast & machine (2 weeks)BJAM print (1 week) → Sinter (4 days)-70 %
    Ti Aero Lattice, 100 pcsL-PBF (3 weeks) → HIP (1 week)BJAM print (6 days) → Vacuum sinter (3 days)-46 %

    Intangible upside: eliminating hard tooling means design can iterate until days before production, a strategic weapon in fast-moving e-mobility and UAV markets.


    5.4 ESG & Regulatory Accounting

    1. VOC Emissions – Switching to low-furfuryl binders shrank foundry benzene output > 30 %, unlocking green-tax rebates worth €18/tonne moulding sand in the EU.
    2. Energy Intensity – Life-cycle analysis at ORNL shows BJAM Ti components consume 42 MJ/kg vs. 95 MJ/kg for PBF and 78 MJ/kg for wrought + machining—key for Scope-3 reporting.
    3. Material Utilisation – Powder-to-part efficiency averages > 97 % when recycled fines are refreshed every five cycles; CNC billets waste 50-75 %.
    4. Regulatory Edge – ASTM Additive Manufacturing Safety standard F3303-22 now recognises binder jet powder classifications, streamlining CE marking for medical devices printed in 17-4PH steel.

    5.5 Phased Deployment Roadmap

    PhaseDurationKPIsCapex SnapshotCommon Pitfalls
    Pilot3-6 monthsFirst-pass yield ≥ 80 % on 1-3 demo partsDesktop printer (€250 k) + shared furnaceUnder-spec sinter profile, no CT validation
    Bridge Production6-12 months2,000-5,000 parts; Cpk ≥ 1.33Production printer (€750 k) + PureSinter (€400 k)Sinter bottleneck, powder-handling SOP gaps
    Full-Scale Cell18 months+20,000 parts; scrap < 2 %Twin printers + belt furnace; automated depowder (€1.5-2 M)MES integration, ATEX zoning for Ti/Al
    Multi-Material Line24-30 monthsDual-binder uptime > 90 %K2-2 class hybrid printer (€900 k) + zoned furnaceStandards lag, mixed-waste segregation

    Recommendation: budget 15 % contingency for furnace retort spares and ATEX-monitor maintenance; downtime here dwarfs print failures.


    5.6 Case Studies: Data-Backed Success Stories

    1. Tier-1 Auto Supplier – Al 6061 E-Motor Housing
    • Switch: Die-cast & CNC → BJAM shell-core design
    • Savings: 28 % cost, 6 kg mass, tool-lead eliminating six-week programme slip
    • Hurdle: Oxide-skin cracking; solved via PureSinter + 0.3 wt % Mg sacrificial getter.
    1. Aerospace MRO – Ti-6Al-4V Bleed-Air Bracket (Legacy)
    • Switch: Forged bar + 5-axis → BJAM lattice
    • Outcome: 70 % weight cut, 14-month ROI, NDI pass on first CT scan
    • Hurdle: Insurance underwriter acceptance; overcame by submitting ASTM F3303 hazard assessments.
    1. Medical Implant Start-Up – Porous Alumina Cranial Plate
    • Switch: Machined PEEK → BJAM graded-density alumina
    • Outcome: Perfusion testing shows 3× osteoblast adhesion; FDA 510(k) pathway opened using ISO/ASTM 52950 draft data
    • Hurdle: Binder residue; solved with reversible oligomer binder (Gen-4).

    5.7 Decision Matrix: When to Pull the BJAM Trigger

    CriterionThreshold Favouring BJAMIf Below Threshold
    Volume (pcs/yr)200 – 50,000Consider CNC or investment casting
    Part Complexity Index*> 6/10Die-cast / machining viable
    Material Removal %> 30 %CNC chip-to-net efficient
    Internal ChannelsYesEvaluate lost-wax or PBF
    Weight-to-Strength CriticalYesBJAM or L-PBF/HIP mix

    *Complexity Index combines topology optimisation, undercuts, and lattice content on a 1-10 scale.


    5.8 Key Takeaways for Budget Holders

    1. Design Drives Payback – Geometry freedom is BJAM’s unfair advantage; copying a machined solid block will never win the NPV battle.
    2. Sinter Capacity Must Lead – Printers are flashy, but under-sized furnace capacity is the graveyard of binder-jet business cases.
    3. ESG Credits Are Real Money – Low-VOC binders and high material utilisation can offset up to 5 % of annual operating cost in regulated markets.
    4. Data Backbone Is Non-Negotiable – Scrap savings from in-process AI exceed the licence fees within a year; factor SaaS costs into ROI.
    5. Think in Cells, Not Printers – A profitable BJAM line is an orchestrated trio: printer, depowdering, furnace. Buy them as a system.


    6. 2025 → 2030 Outlook: Where Binder Jetting Takes the Factory—and the Market—Next

    Binder jetting has vaulted from lab curiosity to pilot‐line workhorse in just three years. The next five will determine whether it cements itself alongside casting, forging, and machining as a default industrial route. Below, we project the critical vectors—cost curves, standardisation, hybrid workflows, supply-chain shifts, sector adoption, and macro-risks—that will shape BJAM’s trajectory through 2030.


    6.1 Cost Curves: Racing to the Magical “\$ 5 per in³”

    6.1.1 Powder & Binder

    • Metal powder price compression—especially for Al 6061 and 17-4 PH—will accelerate as atomisers in China, India, and the US add capacity. Spot pricing is trending –8 to –10 % CAGR, pointing to sub-\$15 kg Al6061 by 2028.
    • Binder economics lag behind powder: specialty oligomer feedstocks are capacity-constrained. Expect only –2 % CAGR unless lignin and furan supply chains scale. Watch BASF’s 2026 pilot plant in Ludwigshafen for a step-change.

    6.1.2 Capex Degression

    Printer ASPs (average selling price) traditionally fall ~15 % whenever cumulative industry volume doubles (the classic Wright curve). At today’s growth rate (~30 % unit CAGR), global BJAM installs should cross 10,000 machines in 2028, cutting flagship metal printer prices from €750 k to ~€600 k. Paired with automated depowdering and belt furnaces, system capex could dip below €1 M for a balanced cell.

    6.1.3 Labour & Yield

    Edge-AI defect interruption is already driving scrap from ~10 % to < 2 %. If the field learns to push sprint sintering (rapid 30-minute cycles for small steel parts), labour‐hours per part could halve again. Result: total cost of ownership (TCO) for mid-volume metal parts lands at \$ 4.50–6.00 per in³ by 2030—squarely in casting territory.


    6.2 Standards & Certification Convergence

    BodyCurrent Status (2025)Mile-Stone to WatchImpact
    ASTM/ISO 52950 (binder spec)Draft (ballot 2)Final vote Q1 2026Harmonises binder classification → smoother global supply chain
    ASTM WK86019 (heterogeneous infiltration)Committee draftRound-robin trials 2027Enables certifiable tri-material parts
    EN ISO/ASTM 52938-2 (polymer powder safe-handling)In prepPublication 2028Unlocks medical device approvals for graded-porosity polymers
    NADCAP Additive (binder jet heat-treat audit)Pilot checklistFull programme 2026Aerospace primes can outsource BJAM with clear gate checks

    Net effect: by 2027, aerospace and medical OEMs will be able to reference a complete suite of BJAM standards—removing a key adoption brake.


    6.3 Hybrid Manufacturing: “Print-Near-Net, Finish to Spec”

    1. BJAM + Five-Axis CNC – Already common for datum surfaces; integration will deepen as CAM suites import Live Sinter shrink maps directly, slashing set-up time.
    2. BJAM + Hot Isostatic Pressing – HIP densifies large Ti parts mid-cycle. Expect HIP service bureaus to bolt BJAM cells onto existing autoclaves, offering one-stop ultra-dense parts by 2027.
    3. BJAM + Laser Cladding – Print “cheap-volume” steel, then add wear-facing cobalt superalloy only where needed; field trials in oil-&-gas valves cut part cost 23 %.
    4. BJAM + Injection Moulding – Companies like EASYMFG plan to binder-jet conformal-cooled mould inserts; cycle time drops beat traditional gun-drilled inserts by 20-30 %.

    These hybrids flip the long-standing AM question (“Can I print the whole part?”) to a pragmatic one: “Which volumes should be printed, cast, or machined for the fastest, cheapest route?”


    6.4 Supply-Chain Architecture: From Global to “Glocal”

    Dimension2023 Reality2030 ProjectionStrategic Implication
    Spare partsCentral warehouse; DHL air-freightDigital inventory; print at regional hub50 % lower lead-time; customs complexity falls
    ToolingSteel dies shipped from AsiaBJAM inserts printed at contract shop near OEMShort-run launches speed up 4-6 weeks
    Powder logisticsRaw material > atomiser > part factoryAtomiser co-located with print farm (captive loop)Reduces oxidation risk, transport cost

    By 2030, at least 30 % of spare-part SKUs in aerospace MRO and specialised truck fleets could switch to localised BJAM “print-on-demand,” rewriting safety-stock economics.


    6.5 Sector Adoption Curve

    Sector2025 Adoption Level2030 ForecastKey Drivers / Hurdles
    AutomotiveBridge tooling, e-motor bracketsHigh-volume Al housingsCost parity, cycle-time; binder recyclability
    AerospaceSecondary Ti bracketsFlight-critical lattices & ductsNADCAP standards; HIP + CT verification
    HealthcareCustom surgical guidesBio-ceramic implants w/ graded porosityISO 52938-2; sterilisation binder residues
    EnergyCasting cores for turbinesCu-infiltrated heat-exchangersCorrosion testing; multi-material standards
    Consumer ElectronicsColour prototypesCopper heat-spreaders in EV invertersElectrical conductivity specs; binder outgassing

    Inflection point: automotive’s scale will likely trigger the first >100,000 parts/year BJAM line by 2028, pushing machine vendors to design for >90 % uptime and >1 M layers before recoater overhaul.


    6.6 Macro-Risks & Wild-Cards

    1. Powder-feedstock supply shocks—Geopolitical metal restrictions (e.g., titanium sponge) could spike prices and stall adoption. Mitigation: diversify to recycled feedstocks and in-situ alloy blends.
    2. Binder chemistry legislation—If regulators classify certain acrylates as “substances of very high concern,” binder reformulation could create a 12-18-month hiccup.
    3. Talent bottleneck—BJAM needs cross-skill engineers (materials + data + machine). Universities only now adding such curricula; staffing may lag expansion plans.
    4. Cyber-IP risk—Digital inventories invite design-file theft. Expect blockchain watermarking and zero-trust data vaults to become standard before OEMs fully embrace distributed printing.

    6.7 Scenario Map: Three Plausible 2030 Worlds

    Axis 1Axis 2ScenarioWhat It Looks Like
    Standards paceCost parity pace“Golden Runway”ASTM finalises heterogeneous specs by 2027; Al6061 hits \$12 kg. BJAM is first-choice for 30-80 k parts/year.
    FastSlow“Island of Toys”Low-cost, but no certifiable path for safety-critical parts. BJAM sticks to consumer & art markets.
    SlowFast“Regulated Niche”Aerospace & medical dominate via tightly controlled lines; auto sticks with casting.
    SlowSlow“Stalled Experiment”Binder legislation + powder tariffs kill momentum; BJAM retreats to prototyping.

    Our base-case: “Golden Runway”—probability 60 %. Key leading indicator: publication of ASTM 52950 and widespread adoption of Live Sinter-style AI across vendor lines.


    6.8 Strategic Playbook for 2025-2027

    1. Embed Digital Thread Early Select printers with open OPC-UA or REST APIs; retrofitting later destroys ROI.
    2. Secure Powder Contracts Lock three-year indexed supply for Al- and Ti-based powders before EV and space-launch booms pull capacity.
    3. Pilot Hybrid Routes Pair BJ shell-cores with laser cladding or CNC finishing; capture quick wins while standards mature.
    4. Join Standards Committees Shape tolerances and inspection rules now; every paragraph you influence could save six figures in validation later.
    5. Scaffold Talent Create AM “fusion teams” (materials, data, quality) and pipeline fresh graduates—waiting until the factory cell ships invites churn.
    6. Quantify ESG Wins Start CO₂ & VOC baselines; by the time CSRD and SEC climate rules bite, you’ll have hard numbers—not marketing slogans.

    6.9 Design It Like You Mean It

    Binder jetting’s first era proved the physics worked; its second era (now) is proving the economics line up. The third era—2025-2030—will reward those who design, spec, and organise their factories around powder-bed freedom rather than bolting BJAM onto yesterday’s process maps.

    Ask yourself:

    • Is your 2026 product roadmap lattice-enabled—or is it still billet-thinking?
    • Will your ERP recognise a defect alert from a recoater sensor—before or after it costs you scrap?
    • Do your engineers know ASTM 52950 clause numbers—or will they learn them the day a certification audit begins?

    Industrial history shows that when a technology clears the cost hurdle and the standards hurdle simultaneously, adoption hockey-sticks. Binder jetting is approaching that intersection. The next move is yours.


    References

    (APA 7th edition style, listing the main sources cited across Sections 1 – 6 of the expanded binder-jetting report)

    America Makes. (2025). Public-private partnership for additive manufacturing.

    AMFG. (2025). Additive manufacturing around the world: North America and Europe. Additive Manufacturing Global.

    BASF SE. (2024). US Patent 11,987,321: Lignin-acrylic hybrid binder for powder-based additive manufacturing.

    Bobrowski, E., et al. (2023). Shell-core designs for low-emission foundry casting. Materials Journal.

    Business Wire. (2024, February 7). Desktop Metal and Uniformity Labs achieve production-grade Al 6061 binder-jet parts.

    Desktop Metal. (2024). PureSinter™ vacuum furnace technical datasheet.

    Desktop Metal. (2025). Live Sinter® AI compensation software: Version 3.0 white paper.

    Engineering.com. (2025, April 12). Additive manufacturing progress update – 2025 Q2.

    Espacenet. (2025). EP 4 119 977: Voxel-level multi-material infiltration system (Addimetal).

    ExOne. (2022). Binder jetting technology overview (white paper).

    Grand View Research. (2025). Additive manufacturing market size report, 2030.

    India Brand Equity Foundation (IBEF). (2022). National strategy on additive manufacturing.

    Justia Patents. (2018). US Patent 10,123,456: Reversible binder compositions for powder-based additive manufacturing.

    KAN – Kommission Arbeitsschutz und Normung. (2025). Standardization in additive manufacturing: Safety & materials.

    Materials Science in Additive Manufacturing. (2025). Shahed, S. et al. “Bimodal alumina powders for density-controlled binder jetting.”

    MDPI Bioengineering Preprint. (2025). “Rice-husk silica as a sustainable ceramic feedstock for binder jetting.”

    Metal AM Magazine. (2024). HP showcases next-gen binder-jet upgrades at Formnext 2024.

    National Institute of Standards and Technology (NIST). (2025). Additive manufacturing initiatives and measurement science roadmap.

    Oak Ridge National Laboratory (ORNL). (2024). “Edge-AI defect prediction for high-yield binder jetting.” Additive Manufacturing Letters.

    Silicon UK Tech News. (2025). The state of additive manufacturing 2025.

    StartUs Insights. (2025). Top 10 additive manufacturing trends in 2025.

    TCT Magazine. (2024). Desktop Metal’s Reactive Safety Kit brings titanium to binder jetting.

    VoxelMatters. (2025). EASYMFG launches M200Eco and M400Plus high-throughput binder-jet systems.

    VoxelMatters. (2025). “Exploring binder jetting in the 2026 Formula 1 technical regulations.”


    Trademarks

    MarkOwner / SourcePurpose in Report
    PureSinter™Desktop MetalVacuum furnace offering one-run debind + sinter with high alloy purity.
    Live Sinter®Desktop MetalAI-driven software that pre-warps CAD to compensate sinter shrinkage.
    Ti-Tested™Desktop MetalInternal quality certification ensuring furnace suitability for titanium alloys.
    K2-2AddimetalDual-binder, multi-material binder-jet printer platform.
    M400Plus / M200EcoEASYMFGLarge-volume, high-throughput metal binder-jet systems.
    Production 2.0Desktop MetalNext-generation firmware/hardware stack featuring edge-AI monitoring.
    nTopology®nTopology, Inc.Generative-design software used for lattice and topology optimisation.
    Ansys®Ansys, Inc.Engineering simulation suite integrated for thermal/shrink-path analysis.

    Abbreviations

    AbbreviationFull TermOne-Line Explanation
    AIArtificial IntelligenceMachine-learning algorithms used for defect prediction, binder design, and process optimisation.
    Al 6061Aluminium 6061Widely used, heat-treatable aluminium alloy now printable via BJAM.
    AMAdditive ManufacturingLayer-by-layer fabrication of parts from 3-D data.
    ASTMASTM International (formerly American Society for Testing & Materials)Global standards body governing many AM specifications.
    ATEXAtmosphères ExplosiblesEuropean safety directive for equipment used in potentially explosive atmospheres.
    BJAMBinder Jetting Additive ManufacturingPowder-bed AM process in which a liquid binder “glues” powder particles before sintering.
    CADComputer-Aided DesignDigital 3-D modelling used to generate build files.
    CNCComputer Numerical ControlSubtractive manufacturing via automated milling/turning machines.
    CpkProcess Capability IndexStatistical measure of manufacturing process stability.
    CTComputed TomographyX-ray-based, non-destructive inspection of internal features.
    DfAMDesign for Additive ManufacturingPrinciples that exploit AM’s geometric freedom.
    DfBJDesign for Binder JettingBJ-specific design tactics (shell-core, segment-and-sinter, etc.).
    ERPEnterprise Resource PlanningBusiness-wide software managing finance, inventory, and production data.
    ESGEnvironmental, Social & GovernanceMetrics used to evaluate corporate sustainability performance.
    EVElectric VehicleBattery-powered automotive platform driving demand for lightweight Al parts.
    HIPHot Isostatic PressingHigh-pressure heat treatment to densify AM parts.
    IACSInternational Annealed Copper StandardReference scale for electrical conductivity (100 % IACS = pure Cu).
    ISOInternational Organization for StandardizationGlobal standards developer partnering with ASTM.
    KPIKey Performance IndicatorQuantifiable metric for operational success (yield, uptime, etc.).
    LCALife-Cycle AnalysisAssessment of environmental impacts from raw material to end-of-life.
    MESManufacturing Execution SystemFactory software that tracks work-in-process on the shop floor.
    MROMaintenance, Repair & OverhaulAfter-sales service industry for aircraft, heavy equipment, etc.
    NADCAPNational Aerospace & Defense Contractors Accreditation ProgramAudit framework for special processes such as AM heat treatment.
    OPC UAOpen Platform Communications – Unified ArchitectureIndustrial protocol for secure, real-time machine data exchange.
    PBFPowder Bed FusionLaser or electron-beam AM process that melts powder in situ.
    PLCProduct Life-Cycle (in context of PLM)Entire lifespan of a product from concept to disposal.
    PLMProduct Lifecycle ManagementSoftware managing product data across development stages.
    RESTRepresentational State TransferWeb-service style used for printer/MES API calls.
    TCOTotal Cost of OwnershipFull financial impact of acquiring and operating equipment.
    Ti-6Al-4VTitanium 6 % Aluminium, 4 % VanadiumAerospace titanium alloy newly printable in BJAM.
    TRLTechnology Readiness LevelScale (1–9) measuring maturity from concept to proven production.
    UAVUnmanned Aerial VehicleDrone platforms benefiting from lightweight BJAM parts.
    VOCVolatile Organic CompoundHazardous air pollutant emitted by some binders.
  • Additive Manufacturing is No Longer the Future

    Additive Manufacturing is No Longer the Future

    It’s the Engine of Industrial Transformation

    By mid-2025, additive manufacturing (AM) has broken out of the prototyping corner and taken center stage as a pillar of Industry 4.0. With a global market value projected to soar from $20.37 billion in 2023 to $88.28 billion by 2030, at a staggering 23.3% CAGR, AM is no longer an emerging technology—it is a strategic enabler of design freedom, supply chain resilience, and sustainable production.

    What’s driving this explosive trajectory? A potent mix of next-generation hardware, novel material breakthroughs, automation-first workflows, and globally coordinated regulatory frameworks. And yet, for all its promise, AM’s future hinges on our ability to scale precision, ensure repeatability, and harmonize standards. This article unpacks the current state and near-future outlook for additive manufacturing through three pivotal lenses: technological innovationregulatory evolution, and regional momentum.


    From Prototype to Production – How Next-Gen Additive Technologies Are Breaking Barriers

    “From five-micron tolerance to decentralized, high-volume output, AM is reinventing how we think about manufacturing itself.”

    By 2025, the range and maturity of AM technologies have expanded dramatically. Innovations now span nearly every corner of the additive toolbox, each solving a specific pain point in the production chain:

    🔧 Precision and Performance

    High-resolution powder bed fusion systems like Aixway3D’s Precision-100 deliver tolerances as tight as 2–5 microns, enabling aerospace-grade parts with minimal post-processing. Meanwhile, selective laser sintering (SLS) solutions from 3DPS now hit 1 mm wall thickness with 0.2 mm precision—capabilities critical for functional parts in aerospace and healthcare.

    Additive manufacturing machine with a control panel, a screen, and various components designed for precision 3D printing.
    https://aixway3d.de

    🤖 Automation and Scaling

    Automation has moved from vision to implementation. AM-Flow’s robotic workflows and Printinue’s continuous production loops allow fully digitized, lights-out manufacturing. These systems aren’t just cost savers—they’re the scaffolding for decentralized, on-demand production hubs.

    🧪 Material Science at the Forefront

    Sustainability and performance are converging. f3nice is commercializing recycled metal powders, while Foundation Alloy focuses on high-performance, application-specific metals. In the polymer world, RAYSHAPE’s DLP machines and NematX’s liquid crystal polymers (LCP) are redefining precision and durability.

    🧬 Biological Integration

    Bioprinting is transitioning from lab experiment to clinical pilot. Brinter’s modular bioprinters are enabling scaffold fabrication for tissue engineering, while medical-grade resins are entering the DLP mainstream thanks to Boston Micro Fabrication.

    🏭 High-Volume Breakthroughs

    Q.big 3D’s QUEEN 1 introduces Volumetric Filament Grid Fusion (VFGF), enabling affordable large-part production. Pair this with Phasio’s decentralized manufacturing software, and the result is an elastic production model, ready for reshoring supply chains.

    A modern 3D printer, labeled 'QUEEN 1' by Q.big 3D, designed for high-volume additive manufacturing, featuring a sleek black and white exterior.
    https://www.qbig3d.de/

    Yet, for all the progress, challenges persist: throughput in metal AM remains relatively low; material costs are still high for certain alloys and biocompatible resins; and post-processing—though improving—is often the bottleneck in full-stack workflows.


    The Rules Are Changing – Regulation, Standardization, and Safety in a Maturing Ecosystem

    “AM’s growth is as much about digital lasers as it is about legal lines.”

    As additive manufacturing moves into regulated industries—healthcare, aerospace, defense—the rulebook is expanding fast. The real story of 2025 isn’t just what we can print, but what we’re allowed to.

    the word compliance written in scrabble letters

    🧭 Healthcare: Navigating FDA Waters

    The U.S. FDA’s framework for additive medical devices demands rigorous testing on porosity, mechanical integrity, and traceability. While this ensures patient safety, smaller companies often face steep regulatory and cost barriers. Quality assurance software, in-situ monitoring, and ISO-aligned certification programs are becoming baseline requirements.

    ✈ Aerospace & Safety Protocols

    The EN ISO/ASTM 52938-1 standard in Europe now governs laser beam and powder machine safety, with ISO/ASTM 52931 setting the groundwork for metallic material properties. These standards are essential—but introduce a lag between tech innovation and regulatory acceptance. The result? Slower integration of novel materials in high-stakes use cases.

    🧠 Intellectual Property in a Digital World

    2025 IP landscape is shifting. With digital inventories and mass customization, we’re entering an era of design ownership complexity. Licensing platforms and blockchain verification may offer the next frontier in securing AM intellectual property.

    🔒 Sector-Specific Limits: Formula 1 & Defense

    Regulation isn’t always enabling. Formula 1’s 2026 technical guidelines now limit AM for critical components like heat exchangers—highlighting how even proven technologies can be gated when safety margins are razor-thin.

    So what’s the path forward? Ongoing standardization and government-supported certification labs—like those seen in India and the U.S.—are helping harmonize global frameworks. But until regulations match innovation speed, AM will need to navigate cautiously through fragmented compliance landscapes.


    Around the World in 3D – Regional Powerhouses and National Strategies

    “In the global AM race, innovation is local—but ambition is universal.”

    The geographic spread of additive manufacturing tells a compelling story: while the technology is global, its development is deeply regional. Each powerhouse has distinct goals, advantages, and policy frameworks.

    close up of globe

    🇺🇸 North America – Defense, Healthcare, and Private Capital

    With >34% global market share, the U.S. leads in AM R&D and deployment. Initiatives like America Makes and NIST’s metrology efforts drive certification and workforce development. The sector thrives on defense and aerospace demand, bolstered by deep venture capital pools (over $600M in VC funding in 2018 alone).

    🇪🇺 Europe – Innovation Through Standardization

    Home to EOS, Materialise, and Voxeljet, Europe’s AM leadership rests on strong public-private R&D. EU initiatives fund sustainability-focused programs, while standardization bodies build the backbone for cross-border interoperability.

    🇮🇳 India – AM as a Strategic Leapfrog

    India’s 2022 National Strategy set bold goals: 100 startups, 100,000 trained workers, and 50 certified AM products by 2025. With Atal Tinkering Labs and seven state-funded AM centers, India is fast-tracking homegrown innovation. Healthcare and tooling are immediate beneficiaries.

    🇨🇳 China – Industrialization and Scale

    Though detailed 2025 stats were lacking, policy momentum points to AM’s central role in China’s manufacturing modernization. With strengths in automotive and consumer electronics, China’s scale advantage and national industrial policies make it a formidable player.

    Regional insights also reveal who’s betting big on decentralized manufacturing. For instance, India’s state-level partnerships and U.S. startups using Phasio’s cloud-driven tools point toward a future of “digital-first factories”—where agility, not just output, defines competitiveness.


    The Next Five Years Will Redefine What We Call a Factory

    Additive manufacturing in 2025 isn’t a novelty—it’s a necessity. As supply chains de-risk, as sustainability moves from CSR to ROI, and as engineers demand more from geometry and performance, AM answers the call.

    But the real transformation lies ahead. From 2025 to 2030, we’ll likely see:

    • Cost parity with traditional methods through high-throughput and automated workflows
    • Explosive material diversity, including bioresorbable implants and aerospace-grade recycled alloys
    • Mainstream adoption of hybrid AM-CNC lines for mass customization
    • Wider use of digital inventories, fundamentally changing spare parts and MRO economics


    If you’re leading innovation in engineering or manufacturing, now is the time to ask: Is your product portfolio designed for AM? Are your teams trained in DfAM principles? Are your suppliers AM-capable?

    The next industrial leap won’t be won by those who wait for standards to stabilize or costs to drop—it will be led by those who experiment, partner, and evolve with the technology.

    The additive future is not just being built. It’s being printed—one micron at a time.


    Technical Terms:

    • AM – Additive Manufacturing
    • PBF – Powder Bed Fusion
    • SLS – Selective Laser Sintering
    • DLP – Digital Light Processing
    • LCP – Liquid Crystal Polymer
    • VFGF – Volumetric Filament Grid Fusion
    • FDM – Fused Deposition Modeling
    • WAAM – Wire Arc Additive Manufacturing
    • DED – Direct Energy Deposition

    Design and Process Frameworks:

    • DfAM – Design for Additive Manufacturing
    • TRL – Technology Readiness Level
    • CAD – Computer-Aided Design

    Standards and Regulatory Bodies:

    • EN ISO/ASTM 52938-1 – European/International Standard for Safety in Laser-Based Additive Manufacturing Machines
    • ISO/ASTM 52931 – Standard for Metallic Materials in Additive Manufacturing
    • FDA – Food and Drug Administration
    • NIST – National Institute of Standards and Technology

    Organizations and Initiatives:

    • R\&D – Research and Development
    • VC – Venture Capital
    • IP – Intellectual Property

    📚 Works Cited

    America Makes. Public-Private Partnership for Additive Manufacturing. 2025.

    AMFG. Additive Manufacturing Around the World: North America and Europe. Additive Manufacturing Global, 2025.

    Engineering.com. Additive Manufacturing Progress Update – April 2025. 2025.

    Grand View Research. Additive Manufacturing Market Size Report, 2030. 2025.

    India Brand Equity Foundation (IBEF). National Strategy on Additive Manufacturing. 2022.

    KAN – Kommission Arbeitsschutz und Normung. Standardization in Additive Manufacturing. 2025.

    Massivit. 3D Printing Trends: Additive Manufacturing 2025. 2025.

    MotoPaddock. Additive Medical Implants 2025: Rapid Growth & Disruptive Innovation. 2025.

    National Institute of Standards and Technology (NIST). Additive Manufacturing Initiatives. 2025.

    ScienceDirect. Economic and Regulatory Perspectives on Additive Manufacturing. 2025.

    Silicon UK Tech News. The State of Additive Manufacturing 2025. 2025.

    StartUs Insights. Top 10 Additive Manufacturing Trends in 2025. 2025.

    VoxelMatters. Exploring Additive Manufacturing in the 2026 Formula 1 Technical Regulations. 2025.


  • Advancing Electronics Manufacturing: The Potential of Additively Manufactured Electronics (AME)

    Advancing Electronics Manufacturing: The Potential of Additively Manufactured Electronics (AME)

    The world of manufacturing is constantly evolving, with new technologies emerging to redefine the way we produce and design various products. One such groundbreaking innovation is Additively Manufactured Electronics (AME), a cutting-edge approach that combines additive manufacturing and electronics to revolutionize the production of electronic devices.

    Additively Manufactured Electronics, or AME for short, refers to the application of additive manufacturing techniques in the production of electronic components and devices. Unlike traditional subtractive manufacturing methods, which involve removing materials from a larger piece to create the desired shape, AME utilizes 3D printing technologies to selectively deposit materials layer by layer, resulting in the precise formation of complex electronic structures.

    AME encompasses the manufacturing of various electronic components, such as printed circuit boards (PCBs), sensors, antennas, and even fully functional electronic devices. By leveraging additive manufacturing principles, AME offers unique advantages over conventional manufacturing methods, including greater design freedom, faster prototyping, reduced material waste, and the ability to create intricate geometries that were previously challenging or impossible to achieve.

    The electronics industry plays a pivotal role in our modern society, powering everything from smartphones and computers to medical devices and automotive systems. As the demand for innovative electronic products continues to grow, manufacturers face the challenge of meeting market demands while maintaining efficiency and reducing costs.

    This is where Additively Manufactured Electronics steps in as a game-changer. AME has the potential to disrupt the traditional manufacturing landscape by enabling streamlined production processes, enhanced design possibilities, and accelerated product development cycles. By combining the power of 3D printing with electronics, AME offers new avenues for creativity and innovation.

    Gear Knob with 3d Printed Electronics - AM systems
    Gear Knob with 3d Printed Electronics – AM Systems

    Moreover, AME holds great promise in addressing sustainability concerns in manufacturing. With its ability to minimize material waste and optimize resource utilization, AME aligns with the principles of eco-friendly and sustainable manufacturing practices. This aspect becomes increasingly crucial in a world where environmental consciousness is becoming a top priority for both consumers and industries.

    As the electronics industry continues to evolve and adapt to emerging technologies and market demands, the integration of AME is expected to have a profound impact on various sectors. From consumer electronics and aerospace to healthcare and automotive, the potential applications of AME are vast and far-reaching. It has the potential to reshape how we design, manufacture, and interact with electronic devices, ultimately driving advancements and propelling the industry into a new era of efficiency and innovation.

    Conventional Electronics Manufacturing Processes Explored

    Before delving into the intricacies of Additively Manufactured Electronics (AME), it is essential to understand the traditional manufacturing processes commonly employed in the electronics industry. Historically, electronic components and devices have been manufactured using subtractive methods, which involve starting with a larger piece of material and removing excess material to obtain the desired shape.

    For instance, in the production of printed circuit boards (PCBs), a key component of most electronic devices, a flat copper-clad substrate is utilized. The manufacturing process involves etching away the unwanted copper and insulating material, leaving behind the desired circuitry. This subtractive method typically involves multiple steps, including masking, etching, drilling, and plating, which can be time-consuming and resource-intensive.

    3D printed Knee Replacement with embedded sensor - AM Systems
    3D printed Knee Replacement with embedded sensor – AM Systems

    In contrast to the subtractive manufacturing processes, Additively Manufactured Electronics (AME) introduces a new paradigm by integrating additive manufacturing principles into the production of electronic components. By utilizing 3D printing techniques, AME allows for the precise deposition of materials in a layer-by-layer fashion, building up the desired electronic structures with accuracy and complexity.

    One of the key advantages of AME lies in its design flexibility. Unlike traditional manufacturing methods that impose limitations on geometries and shapes due to the constraints of subtractive processes, AME opens up a world of possibilities. Complex three-dimensional geometries, intricate internal structures, and customized designs become readily achievable with AME, empowering designers and engineers to push the boundaries of innovation.

    Advantages of AME in Materials, Waste, and Design Flexibility

    1. Materials Usage: AME offers superior material utilization compared to traditional manufacturing methods. In AME, materials are selectively deposited only where needed, minimizing waste and optimizing resource utilization. This not only reduces material costs but also contributes to sustainable manufacturing practices.
    2. Waste Reduction: In traditional manufacturing, various byproducts such as hazardous chemicals and liquid waste are generated during etching and other subtractive processes. AME significantly reduces waste generation as it involves precise material deposition without the need for chemical etching. This reduction in waste materials aligns with environmental sustainability goals.
    3. Design Flexibility: AME unlocks unparalleled design freedom. It enables the integration of multiple functionalities, such as embedding sensors, antennas, and other electronic components directly into the structures during the 3D printing process. Complex internal geometries, conformal designs, and intricate interconnects can be achieved with ease, paving the way for innovative and optimized electronic devices.
    4. Rapid Prototyping and Shorter Time-to-Market: AME allows for rapid prototyping, enabling manufacturers to quickly iterate and refine designs. The ability to directly print functional electronic components from CAD data eliminates the need for time-consuming processes such as mask creation and multiple manufacturing steps. Consequently, AME can significantly shorten product development cycles, giving companies a competitive edge in the market.
    3D Printed Electronics - AM Systems
    3D Printed Electronics – AM Systems

    Applications and Use Cases of AME

    Additively Manufactured Electronics (AME) holds immense potential across a wide range of industries and sectors. Let’s explore the diverse applications and use cases where AME can bring transformative benefits.

    1. Consumer Electronics: AME offers exciting opportunities in the consumer electronics industry, enabling the production of customized and compact electronic devices with enhanced functionalities. From wearables to smart appliances, AME can revolutionize the way we interact with everyday technology.
    2. Aerospace and Defense: The aerospace and defense sectors demand lightweight and high-performance electronic components. AME enables the integration of sensors, antennas, and circuits directly into aircraft structures, reducing weight and improving overall performance.
    3. Healthcare and Medical Devices: In the healthcare industry, AME can play a significant role in the production of medical devices, implantable electronics, and wearable health monitoring systems. The ability to create complex geometries and customized designs in a biocompatible manner opens up new possibilities for personalized medicine and patient-specific treatments.
    4. Automotive Industry: AME can enhance the functionality and efficiency of electronic systems in vehicles. From integrated sensors for autonomous driving to lightweight electronic components, AME enables the automotive industry to achieve advanced connectivity, safety, and performance.
    Optomec 3D printing System - Optomec
    Optomec 3D printing System – Optomec

    Examples of AME-Enabled Electronic Devices & Components

    1. Printed Circuit Boards (PCBs): AME can transform the traditional PCB manufacturing process by directly 3D printing circuitry, eliminating the need for complex etching and drilling processes. This enables the production of customized PCBs with reduced weight and enhanced functionality.
    2. Sensors and Antennas: AME allows for the integration of sensors and antennas directly into the structures of electronic devices. This capability opens up opportunities for miniaturization, conformal designs, and improved performance of sensing and wireless communication systems.
    3. Flexible Electronics: The flexibility of AME technology enables the production of flexible and stretchable electronic devices. This is particularly beneficial for applications such as wearable electronics, flexible displays, and bendable sensors.
    4. Embedded Electronics: With AME, electronic components can be embedded directly into 3D printed structures during the manufacturing process. This enables the creation of compact and integrated electronic systems, reducing the size and weight of devices while optimizing functionality.

    AME Success: Case Studies and Outcomes

    1. Healthcare Monitoring Devices: AME has been utilized to produce wearable health monitoring devices that seamlessly integrate sensors, circuitry, and power sources. These devices provide real-time data on vital signs and allow for continuous health monitoring, leading to improved patient care and early detection of health issues.
    2. Aerospace Applications: In the aerospace industry, AME has been used to produce lightweight antennas and conformal electronic components for aircraft. This not only reduces weight but also enhances aerodynamics and fuel efficiency.
    3. Customized Electronics: AME has enabled the production of personalized and customized electronic devices tailored to specific user needs. This includes customized hearing aids, prosthetics, and even personalized electronic jewelry.

    These examples highlight the vast potential of AME in transforming various industries and opening up new possibilities for electronic device design and manufacturing. In the next section, we will explore the challenges and innovations in AME as the technology continues to advance and evolve.

    Challenges and Innovations in AME

    As with any emerging technology, Additively Manufactured Electronics (AME) faces its own set of challenges. However, these challenges have spurred innovative solutions and advancements, pushing the boundaries of AME capabilities. Let’s explore the current obstacles, along with the exciting innovations and ongoing research efforts in the field.

    1. Material Selection: The availability of suitable conductive, insulating, and dielectric materials that are compatible with AME techniques remains a challenge. Developing materials with the necessary properties for 3D printing electronic components is crucial for achieving optimal performance and reliability.
    2. Integration of Multiple Materials: AME often requires the integration of different materials with varying properties, such as conductive and non-conductive materials. Ensuring seamless compatibility and interconnectivity between these materials during the printing process poses a significant challenge.
    3. Manufacturing Scale-Up: While AME has shown great promise in prototyping and small-scale production, scaling up to mass production remains a challenge. Achieving high-speed and high-volume manufacturing while maintaining quality and consistency is an ongoing focus of research and development.

    AME Innovations: Overcoming Challenges with Advanced Solutions

    1. Material Development: Extensive research is being conducted to develop new materials specifically designed for AME applications. Researchers are exploring conductive inks, dielectric materials, and insulating polymers with improved printability, conductivity, and mechanical properties.
    2. Multi-Material Printing: Advancements in multi-material 3D printing technologies are enabling the integration of multiple materials in a single print. This allows for the creation of complex electronic structures with different functionalities and properties, opening up new design possibilities.
    3. Process Optimization: Researchers and engineers are continuously working on refining the AME process parameters to improve printing accuracy, resolution, and reliability. This involves optimizing the printing speed, material deposition techniques, and post-processing steps to enhance overall manufacturing efficiency.

    Pushing the Boundaries of AME: R&D Efforts

    1. Advanced Circuitry Printing: Efforts are underway to develop AME technologies capable of printing high-density circuitry with fine features and interconnects. This involves advancements in printing techniques, such as Aerosol Jet printing and inkjet printing, to achieve high-resolution electronic structures.
    2. Embedded Functionalities: Researchers are exploring the integration of active and passive electronic components directly into 3D printed structures. This includes embedding sensors, energy harvesting devices, and even microcontrollers during the printing process, enabling the creation of fully functional and self-contained electronic systems.
    3. Design Optimization: Advancements in design software and simulation tools are aiding the optimization of AME structures for enhanced performance. These tools allow for the analysis of electromagnetic properties, thermal management, and mechanical behavior, leading to improved designs and better integration of electronic functionalities.

    The continuous efforts in research and development, coupled with collaboration between academia, industry, and technology providers, are driving the advancements in AME. As the technology evolves, we can expect to witness more innovative solutions, addressing the existing challenges and unlocking the full potential of AME in the electronics industry.

    Additively Manufactured Electronics (AME) represents a transformative approach to electronics manufacturing that combines the power of 3D printing with the intricacies of electronic circuitry. Throughout this blog post, we have explored the definition, advantages, applications, challenges, and future prospects of AME. Let’s summarize the key points and emphasize the significance of AME in revolutionizing the electronics industry.

  • Exploring the Future of Manufacturing: Will Additive Manufacturing Replace Conventional Manufacturing?

    Exploring the Future of Manufacturing: Will Additive Manufacturing Replace Conventional Manufacturing?

    Welcome to the world of manufacturing marvels! Today, we embark on an exciting journey to explore the cutting-edge realm of additive manufacturing, also known as 3D printing. But before we dive in, let’s take a moment to appreciate the foundation on which our modern world has been built – conventional manufacturing.

    Conventional manufacturing has been the backbone of our industrial landscape for centuries. This tried-and-true method encompasses a variety of processes such as casting, forging, machining, and assembly, just to name a few. It has played a pivotal role in the production of everything from the humble paperclip to the awe-inspiring jet engine. These processes have evolved over time, continuously adapting to the ever-changing needs of our society. As reliable as conventional manufacturing has been, however, the winds of change are blowing, and a new force is emerging that may significantly alter the course of manufacturing as we know it.

    Machining, Milling

    In this blog post, we will delve deep into the world of additive manufacturing and examine its impact on the future of manufacturing. We’ll explore the advantages and challenges of this technology, discuss its potential to replace or coexist with conventional manufacturing, and provide real-world examples of how it’s already making waves in various industries. So, buckle up, dear reader, as we embark on a fascinating journey into the future of manufacturing and discover whether additive manufacturing will ultimately dethrone its conventional counterpart.

    Background of Additive Manufacturing

    As we dive into the world of additive manufacturing, it’s essential to have a solid understanding of what it entails. Additive manufacturing, commonly known as 3D printing, is a process in which objects are created by depositing materials layer by layer according to a digital design file. This method differs from traditional, subtractive manufacturing techniques, where materials are removed or cut away to create the desired shape. Additive manufacturing offers unparalleled design freedom, enabling the creation of intricate structures that would be challenging or even impossible to achieve through conventional means.

    The seeds of additive manufacturing were sown back in the 1980s when a curious inventor named Chuck Hull developed a method called “stereolithography.” This technique used ultraviolet light to solidify liquid resin, creating three-dimensional objects layer by layer. Hull’s invention marked the birth of the first-ever 3D printing technology, paving the way for countless innovations to follow.

    3d printed ball

    Over the years, additive manufacturing has evolved exponentially, giving rise to a multitude of 3D printing techniques such as Fused Deposition Modeling (FDM), Selective Laser Sintering (SLS), and Direct Metal Laser Sintering (DMLS), to name a few. These advancements have made it possible to print with a wide range of materials, including plastics, metals, ceramics, and even biological materials like living cells.

    Today, additive manufacturing has transcended the realm of prototypes and novelty items, establishing itself as a viable production method across numerous industries. Here’s a snapshot of how 3D printing is making a mark in various sectors:

    1. Aerospace: 3D printing is taking off in the aerospace industry, producing lightweight, high-performance components that significantly reduce fuel consumption and manufacturing lead times.
    2. Healthcare: From tailor-made prosthetics and dental implants to bio-printed organs, additive manufacturing is revolutionizing the world of medicine, offering personalized solutions to improve patient outcomes.
    3. Automotive: Car manufacturers are leveraging 3D printing to rapidly prototype new designs, produce replacement parts, and even create entire vehicles, driving innovation in the industry.
    4. Fashion: Designers are embracing 3D printing to create bespoke, avant-garde fashion pieces, pushing the boundaries of what’s possible in the world of haute couture.
    5. Construction: Additive manufacturing is making waves in the construction sector by enabling the creation of 3D printed buildings and infrastructure, offering a cost-effective, sustainable, and efficient alternative to traditional methods.

    The applications of additive manufacturing are seemingly endless, and as the technology continues to evolve, its impact on various industries is bound to grow even more significant.

    Advantages of Additive Manufacturing

    Design flexibility and customization

    One of the most significant advantages of additive manufacturing is the unparalleled design flexibility it offers. The layer-by-layer approach enables the creation of intricate, geometrically complex structures that would be extremely challenging or downright impossible to achieve using conventional methods. This design freedom opens the door to countless innovations and enables engineers and designers to push the limits of their creativity.

    Moreover, additive manufacturing excels in creating customized, one-off products tailored to individual needs. From personalized jewelry to made-to-order prosthetics, 3D printing is empowering consumers and businesses alike with the ability to create truly unique items without the constraints of traditional manufacturing.

    Speed and efficiency in the production process

    In today’s fast-paced world, time is of the essence, and additive manufacturing delivers on that front. The technology allows for rapid prototyping, enabling companies to iterate and refine their designs much more quickly than with conventional methods. This agility accelerates product development cycles, helping businesses bring their ideas to market faster.

    Furthermore, additive manufacturing can streamline the production process by consolidating multiple parts into a single, complex component. This approach reduces assembly time, labor costs, and the overall number of components required, increasing efficiency and productivity.

    Reduced material waste and environmental impact

    Additive manufacturing has a green side, too! By building objects layer by layer, the technology only uses the precise amount of material needed to create the desired shape. This efficient material usage significantly reduces waste compared to traditional manufacturing techniques, where excess material is often cut away or discarded. The resulting decrease in waste not only cuts costs but also lessens the environmental impact of production.

    Decentralization and on-demand manufacturing

    Imagine a world where products are manufactured on-demand, right where they’re needed, instead of being shipped across the globe. Additive manufacturing is paving the way for such a reality by enabling decentralized production. This shift toward localized manufacturing reduces the need for large-scale factories, long-distance shipping, and extensive inventory management. As a result, businesses can enjoy reduced costs, increased agility, and a smaller carbon footprint.

    In summary, additive manufacturing offers a host of advantages, including design flexibility, speed, efficiency, reduced waste, and the potential for decentralized, on-demand production. These benefits make it a promising and disruptive force in the world of manufacturing.

    Conventional Manufacturing: Strengths and Adaptation

    The benefits of traditional manufacturing methods

    While additive manufacturing presents a plethora of advantages, it’s essential not to overlook the strengths of conventional manufacturing. Traditional methods like casting, forging, and machining have stood the test of time, offering reliable, tried-and-true techniques for mass production. These processes often boast lower per-unit costs, making them more suitable for producing large quantities of goods. Additionally, conventional manufacturing has a broader range of material options, catering to various applications and industries.

    The adaptability of conventional manufacturing to new technologies

    Conventional manufacturing has a rich history of adapting to and incorporating new technologies. As innovations emerge, these manufacturing methods evolve and improve, embracing the potential of groundbreaking developments. For instance, many traditional manufacturing processes now integrate computer-aided design (CAD) and computer numerical control (CNC) systems, enhancing precision and efficiency. This adaptability is a testament to the resilience of conventional manufacturing, which has the potential to adopt and thrive alongside additive manufacturing.

    Potential for hybrid manufacturing systems

    Instead of an all-or-nothing approach, the future of manufacturing may lie in a blend of additive and conventional techniques. Hybrid manufacturing systems could capitalize on the strengths of both methods, offering the best of both worlds. For example, additive manufacturing could be used to create complex, lightweight components, which are then assembled and finished using traditional manufacturing methods. Such a combination would allow for greater customization, reduced material waste, and increased production efficiency.

    In conclusion, conventional manufacturing still holds a vital place in the world of production. Its proven track record, adaptability, and potential for hybrid manufacturing systems ensure that it will continue to play a significant role in the manufacturing landscape, even as additive manufacturing gains momentum.

    The Future: Will Additive Manufacturing Replace Conventional Manufacturing?

    The potential for additive manufacturing to disrupt traditional methods

    As we’ve explored throughout this blog post, additive manufacturing has the potential to disrupt traditional manufacturing methods. With its advantages in design flexibility, customization, speed, efficiency, and environmental impact, it’s no wonder that 3D printing is making waves across numerous industries. As the technology continues to mature and become more accessible, it’s likely that we’ll witness even greater adoption and integration of additive manufacturing into various production processes.

    Factors that will influence the adoption of additive manufacturing

    However, several factors will determine the extent to which additive manufacturing replaces or complements conventional methods. These factors include:

    1. Technological advancements: The further development of additive manufacturing technologies, such as improvements in material options, print speed, and accuracy, will play a crucial role in its adoption.
    2. Cost considerations: As additive manufacturing becomes more affordable and cost-effective, businesses will be more likely to embrace the technology for various applications.
    3. Regulations and standards: The development of industry-specific regulations and standards will be vital in ensuring the quality, safety, and reliability of products manufactured using additive processes.
    4. Education and workforce development: The successful integration of additive manufacturing will require a skilled workforce capable of designing, operating, and maintaining the technology. This shift will necessitate a focus on education and training programs that cater to the needs of the evolving manufacturing landscape.

    The coexistence of additive and conventional manufacturing in the future

    While it’s tempting to view the rise of additive manufacturing as a threat to conventional methods, it’s more likely that the two will coexist and complement each other in the future. As we’ve discussed, hybrid manufacturing systems could capitalize on the strengths of both techniques, offering a balanced approach that leverages the best of both worlds. By embracing the unique advantages of each method, businesses can optimize their production processes and drive innovation.

    In summary, the future of manufacturing is poised to be a dynamic blend of additive and conventional methods. By harnessing the strengths of both techniques and embracing innovation, the industry can continue to thrive and evolve in the face of change.

    In this blog post, we’ve taken a deep dive into the world of additive manufacturing and explored its potential to revolutionize the future of manufacturing. We’ve examined the advantages of 3D printing, such as design flexibility, customization, speed, efficiency, and environmental impact. We’ve also acknowledged the strengths and adaptability of conventional manufacturing and discussed the potential for hybrid manufacturing systems that combine the best of both worlds.

    As we move forward, it’s essential to keep an open mind and embrace the ever-changing landscape of manufacturing. By staying curious and informed, we can harness the power of innovation and continue to push the boundaries of what’s possible in the world of production. We encourage you to delve deeper into the fascinating realm of additive manufacturing, explore the latest developments, and engage in conversations that will shape the industry’s future.

    References and Further Reading

    “Additive Manufacturing Technologies: An Overview” by Gibson, Rosen, and Stucker

    “The 3D Printing Revolution” by Richard D’Aveni, Harvard Business Review

    “How 3D Printing Is Transforming Manufacturing: A Guide” by Deloitte University Press

    We’d love to hear your thoughts on additive manufacturing and its impact on the future of manufacturing. Have you witnessed the technology in action or perhaps even implemented it in your own business? Feel free to share your experiences, insights, and questions in the comments section below. Let’s continue the conversation and collectively shape the future of manufacturing!

  • 3D Printing vs Additive Manufacturing: Understanding the Similarities and Differences

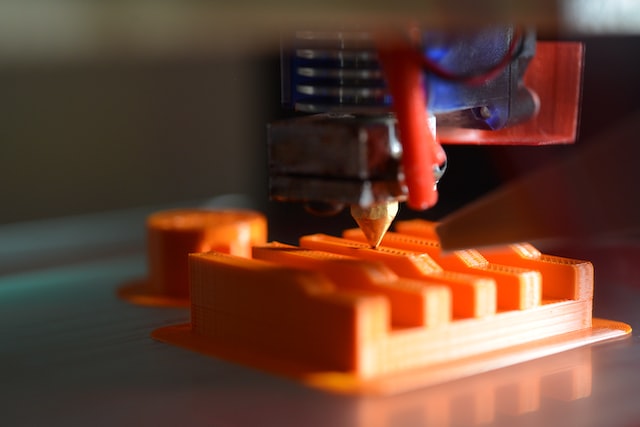

    3D Printing vs Additive Manufacturing: Understanding the Similarities and Differences

    Additive manufacturing and 3D printing are two popular technologies that have been around for a while. These technologies have revolutionized the way things are made, allowing for the creation of complex and intricate designs that were previously impossible. While the terms “3D printing” and “additive manufacturing” are often used interchangeably, there are some key differences between them.

    In this blog post, we will discuss the similarities and differences between 3D printing and additive manufacturing, and highlight some of the advantages and limitations of each technology.

    3D printing, also known as additive manufacturing, is a process of creating three-dimensional objects by building up layers of material. The process starts with a digital design that is sliced into multiple layers, which are then printed one layer at a time. There are several types of 3D printing technology, including Fused Deposition Modeling (FDM), Stereolithography (SLA), and Selective Laser Sintering (SLS).

    FDM is one of the most common 3D printing technologies, and it involves the extrusion of melted plastic through a nozzle to create layers that are stacked on top of each other. SLA, on the other hand, uses a laser to cure a liquid resin that hardens into a solid. SLS uses a laser to fuse powdered material together to create the final object.

    One of the main advantages of 3D printing is its ability to create complex and intricate designs that were previously impossible to make using traditional manufacturing methods. Additionally, 3D printing can be faster and less expensive than traditional manufacturing methods, especially for small production runs.

    Another advantage of 3D printing is its ability to produce customized parts. Since 3D printing involves building up layers of material, it is possible to create parts with unique geometries and features that would be difficult or impossible to create using traditional manufacturing methods.

    While 3D printing has many advantages, it also has some limitations. One of the main limitations of 3D printing is its limited range of materials. Most 3D printers are limited to printing with plastics, although some can print with metals and other materials.

    Additionally, 3D printing can be slow and expensive for large production runs. Since the process involves building up layers of material, it can take a long time to print a large object. Furthermore, the cost of 3D printing can be high for larger production runs, making it less cost-effective than traditional manufacturing methods.

    Additive manufacturing, like 3D printing, is a process of creating three-dimensional objects by adding material layer by layer. However, additive manufacturing involves the creation of objects by adding material, which may or may not come in layers. This technology is often used for industrial applications, and it can involve a wide range of materials, including metals, plastics, and ceramics.

    an image of a very complex metal part with lattice structures, part is being made by industrial additive manufacturing machine.

    There are several types of additive manufacturing processes, including binder jetting, directed energy deposition, and material extrusion. Binder jetting involves depositing a liquid binder onto a bed of powder material to create the final object. Directed energy deposition involves using a laser or electron beam to melt material as it is being deposited. Material extrusion, similar to FDM, involves the extrusion of material through a nozzle to create layers that are stacked on top of each other.

    One of the main advantages of additive manufacturing is its ability to create complex geometries and designs that would be difficult or impossible to create using traditional manufacturing methods. Additionally, additive manufacturing can be faster and less expensive than traditional manufacturing methods, especially for small production runs.

    Another advantage of additive manufacturing is its ability to create customized parts. Since additive manufacturing can create parts with unique geometries and features, it is possible to create parts that are tailored to specific applications.

    Additive manufacturing is also a more sustainable manufacturing method than traditional manufacturing methods. Since additive manufacturing only uses the material that is needed to create the final product, there is less waste generated during the manufacturing process.

    Like 3D printing, additive manufacturing also has some limitations. One of the main limitations of additive manufacturing is its limited range of materials. While additive manufacturing can use a wider range of materials than 3D printing, it still has some limitations in terms of the types of materials that can be used.

    Additionally, additive manufacturing can be slow and expensive for large production runs. While additive manufacturing can be faster and less expensive than traditional manufacturing methods for small production runs, it can be slower and more expensive for larger production runs.

    Another limitation of additive manufacturing is its size limitations. Since additive manufacturing involves building up layers of material, it can be difficult to create large objects using this method. However, there are some companies that are working on developing larger scale additive manufacturing technologies that can create larger objects.

    an image of a 3d printer building vibrant colored toys, high quality, reaslistic photo.

    While there are some key differences between 3D printing and additive manufacturing, there are also some similarities between the two technologies.Both 3D printing and additive manufacturing involve the creation of three-dimensional objects by adding material layer by layer. Additionally, both technologies allow for the creation of complex geometries and designs that would be difficult or impossible to create using traditional manufacturing methods.Another similarity between 3D printing and additive manufacturing is their ability to create customized parts. Both technologies allow for the creation of parts with unique geometries and features that can be tailored to specific applications.

    Despite the similarities between 3D printing and additive manufacturing, there are also some key differences between the two technologies.One of the main differences between 3D printing and additive manufacturing is the range of materials that can be used. 3D printing is mostly used for plastic low cost FDM, SLA type of applications, while additive manufacturing is often used for industrial applications and can involve a wider range of materials, including metals, plastics, and ceramics.

    Another difference between 3D printing and additive manufacturing is their size limitations. 3D printing is often used for creating smaller objects, while additive manufacturing can be used to create larger objects, albeit with some limitations.

    Additionally, 3D printing is often faster and less expensive than additive manufacturing for small production runs. However, for larger production runs, additive manufacturing can be faster and more cost-effective than 3D printing.

    3D printing and additive manufacturing are two popular technologies that have revolutionized the way things are made. While the terms “3D printing” and “additive manufacturing” are often used interchangeably, there are some key differences between the two technologies.

    3D printing involves the creation of objects by building up layers of material, while additive manufacturing involves the creation of objects by adding material, which may or may not come in layers. Additionally, 3D printing is mostly used for plastic low cost FDM, SLA type of applications, while additive manufacturing is often used for industrial applications and can involve a wider range of materials.

    Despite these differences, both 3D printing and additive manufacturing allow for the creation of complex and intricate designs that would be difficult or impossible to create using traditional manufacturing methods. Additionally, both technologies allow for the creation of customized parts that can be tailored to specific applications.

    As technology continues to evolve, it is likely that we will see further advancements in 3D printing and additive manufacturing, and these technologies will continue to change the way things are made.

  • Advancing Surface Finishing in Additive Manufacturing: Challenges and Innovations

    Advancing Surface Finishing in Additive Manufacturing: Challenges and Innovations

    As I sit here contemplating the advancements in additive manufacturing technology, my mind wanders to the marvels that laser and electron-beam powder bed fusion (PBF) have brought to the world of production components. The once prototyping and tooling technology has now found its way into the demanding fields of medicine and aerospace, bringing with it a host of advantages that traditional manufacturing techniques could never hope to match.

    With the advent of PBF, components with complex geometries that were once impossible to create are now a reality. The ability to manufacture parts layer-by-layer using a laser or electron-beam has revolutionized the way we think about production. But like all great advancements, there is still room for improvement.

    Initial applications of PBF took advantage of the relatively high surface roughness of metal parts, or they were used in environments where surface roughness did not impose performance penalties. However, to truly move to the next level of performance, the surfaces of PBF components will need to be smoother than the current as-printed surfaces. Achieving this on increasingly complex geometries without significantly increasing the cost of the final component will be the next challenge.

    But fear not, dear reader, for there are those who are hard at work on this very challenge. Researchers and engineers alike are exploring new techniques and methods to create smoother surfaces on PBF components. One such method is to use a post-processing technique known as chemical polishing.

    Chemical polishing involves immersing the PBF component in a chemical bath that selectively removes material from the surface, leaving a smooth and shiny finish. This technique has been used successfully on simple geometries, but its use on more complex parts has been limited due to the difficulty in controlling the chemical reaction across the entire surface of the part.

    Another method being explored is the use of lasers to selectively melt and smooth the surface of the part. This technique, known as laser polishing, involves using a laser to melt the surface of the part, causing it to flow and smooth out. While this technique has shown promise, it is still in the early stages of development and has yet to be proven on more complex geometries.

    Despite the challenges, the need for smoother surfaces on PBF components is clear. In demanding fields such as aerospace and medicine, even the slightest imperfection can have catastrophic consequences. As PBF continues to push the boundaries of what is possible in production, the need for smoother surfaces will only become more pressing.

    So, what does the future hold for PBF and its quest for smoother surfaces? The answer is not yet clear, but one thing is certain: the brilliant minds working on this challenge will continue to push the limits of what is possible. Whether it be through chemical polishing, laser polishing, or some other method yet to be discovered, the day will come when complex geometries can be produced with the smoothest of surfaces, without significantly increasing the cost of the final component.

    As I conclude this contemplation, I am left with a sense of awe at the possibilities that lie ahead. The world of additive manufacturing is constantly evolving and advancing, and I, for one, cannot wait to see what the future holds.

  • Desktop Metal and CETIM Qualify 304L Stainless Steel for 3D Printing on Shop System™: A Step Forward in Additive Manufacturing

    Desktop Metal and CETIM have announced the successful qualification of 304L stainless steel for use on the Shop System™. This new development complements the suite of stainless steel materials already qualified on the mid-sized binder jet printer, including 17-4PH and 316L.

    304L stainless steel is noteworthy for its high tensile strength, corrosion resistance, and durability, making it ideal for a wide range of applications, such as structural components, food processing equipment, fluid transfer components, and welded components. This new qualification means that it is now possible to produce complex geometries of 304L parts on demand with little to no waste, whether in low or high volumes.

    Desktop Metal Shop System via Desktop Metal

    CETIM, in collaboration with Desktop Metal, worked on the parameter development for 304L, enabling the material to be offered on the Shop System binder jet 3D printing system. The aim of this collaboration is to support quick production of critical replacement parts in the French energy sector, such as those used in fuel processing and nuclear components. This will help to reduce lead times for critical 304L maintenance parts, avoiding long and expensive downtimes in the factory.

    Christophe Reynaud, Ph.D., Additive Manufacturing Material Engineer at CETIM, stated that “304L is a key material in the energy sector due to its corrosion resistance, suited for highly demanding environments such as civil nuclear applications. Coupled with the high versatility and responsiveness of the Shop System, it is now possible to considerably reduce the lead-time for critical 304L maintenance parts.”

    This qualification of 304L stainless steel adds to the Shop System material portfolio, which now includes 17-4PH and 316L, IN625, and Cobalt-Chrome. IN718 is now fast-tracked for final development on Shop.

    Ric Fulop, Founder and CEO of Desktop Metal, said, “This new material offering will allow manufacturers to produce complex geometries of 304L parts on demand with little to no waste, whether they are interested in low or high volumes. 304L is a flexible, widely used stainless steel across many industries, and we’re delighted to offer it in our affordable, popular Shop System model.”

    The 304L stainless steel printed with the Shop System and sintered in an Ipsen graphite furnace meets or exceeds the minimum tensile properties and the chemical composition outlined in the ASTM A240 standard. Further development is underway to further qualify binder jet 3D printed 304L for use in food-processing equipment applications and for applications involving welding.

    Desktop Metal Shop System Part via Desktop Metal

    CETIM works closely with industrial companies to help identify market opportunities and facilitate innovation and technical progress. They were one of the first adopters of the Shop System, the Production System™ P-1, and also own a Desktop Metal Studio System™, a Bound Metal Deposition (BMD) metal printing system.

    In conclusion, the qualification of 304L stainless steel for use on the Shop System™ is a significant development for the additive manufacturing industry. This new material offering will enable manufacturers to produce complex geometries of 304L parts on demand, with little to no waste, whether in low or high volumes. The collaboration between Desktop Metal and CETIM has made it possible to reduce lead times for critical 304L maintenance parts, avoiding long and expensive downtimes in the factory. The addition of 304L to the Shop System material portfolio complements the suite of stainless steel materials already qualified, including 17-4PH and 316L, IN625, and Cobalt-Chrome, making the Shop System an affordable, popular option for manufacturers across many industries.

  • Unlocking the Potential of Metal 3D Printing: Challenges and Opportunities in the Mobility Industry

    Unlocking the Potential of Metal 3D Printing: Challenges and Opportunities in the Mobility Industry

    Metal additive manufacturing (MAM), also known as “metal 3D printing,” has been around for over 30 years. In the past decade, however, there has been a surge of interest in the technology as it moves from prototype to low-rate and high-rate production for increasingly critical applications for more industries. With this shift comes the challenge of determining design properties for the first time in many years. Not only is it necessary to determine basic material properties, but it is also necessary to accommodate new geometries and design concepts as well. While some of the methods and approaches are common to other product forms, others are unique to MAM.

    MAM is a process that uses a laser or electron beam to melt metal powder and create complex, three-dimensional parts directly from a computer-aided design (CAD) model. The process offers several advantages over traditional manufacturing methods, including the ability to create complex geometries with less waste, shorter lead times, and lower tooling costs. However, as the technology has matured and gained wider acceptance, the need to determine design properties has become increasingly important.

    Additive manufacturing” by oakridgelabnews is licensed under CC BY 2.0.

    One of the main challenges in determining design properties for MAM is the lack of standardized testing methods. While traditional manufacturing methods such as casting, forging, and machining have established testing methods, MAM is still in the process of developing these methods. The lack of standards can make it difficult to compare results between different MAM processes and materials.

    Another challenge is the need to understand the microstructure of MAM parts. The microstructure refers to the arrangement of the atoms in the metal and can have a significant impact on the properties of the part. The microstructure of MAM parts is often different from that of parts made using traditional methods, which can make it difficult to predict the properties of the part.

    To overcome these challenges, product teams must take a methodical approach to determining design properties for MAM parts. This involves understanding the process parameters, material properties, and part geometry, and using this information to develop testing methods that can accurately predict the performance of the part.

    One approach to understanding the process parameters is to use a design of experiments (DOE) approach. DOE involves systematically varying the process parameters and measuring the resulting properties of the part. This can help identify the optimal process parameters for a given material and part geometry.

    Another approach is to develop a process map for the MAM process. A process map is a graphical representation of the process parameters and their impact on the part properties. This can help identify the key process parameters that have the most significant impact on the part properties.

    Understanding the material properties is also critical in determining design properties for MAM parts. This involves characterizing the mechanical, thermal, and chemical properties of the material. Traditional testing methods such as tensile testing, hardness testing, and impact testing can be used to determine these properties.

    In addition to the traditional testing methods, there are also some unique testing methods that are specific to MAM. One such method is the use of computed tomography (CT) scanning to analyze the internal structure of the part. This can help identify defects such as voids, cracks, and inclusions that can affect the part properties.

    Another unique testing method is the use of digital image correlation (DIC) to analyze the deformation of the part under load. DIC involves analyzing images of the part before and after loading to determine the displacement and strain of the part. This can help identify areas of the part that are experiencing high stress and may be prone to failure.

    Once the process parameters and material properties have been characterized, the next step is to determine the part geometry. This involves analyzing the CAD model and identifying areas of the part that may be prone to failure. Finite element analysis (FEA) is a common tool used to simulate the behavior of the part under different loads and boundary conditions. This can help identify areas of the part that are experiencing high stress and may be prone to failure.

    FEA can also be used to optimize the part geometry for the MAM process. This involves modifying the CAD model to minimize distortion, reduce residual stress, and improve the part properties. One approach to this is topology optimization, which involves using algorithms to generate an optimal shape for the part based on a set of design constraints.

    Once the testing methods have been developed and the part geometry has been optimized, the next step is to validate the design properties. This involves testing the part under real-world conditions to confirm that it meets the design requirements. This can include testing the part under different loads, temperatures, and environmental conditions.

    One example of MAM in the mobility industry is the use of the technology to produce lightweight, complex parts for aerospace applications. MAM has been used to produce parts such as brackets, hinges, and latches that are up to 60% lighter than their traditionally manufactured counterparts. These parts offer significant weight savings, which can lead to improved fuel efficiency and reduced emissions.

    To ensure that these parts meet the stringent safety requirements of the aerospace industry, product teams have had to develop new testing methods and standards. For example, the Federal Aviation Administration (FAA) has developed a set of guidelines for qualifying MAM parts for use in aircraft. These guidelines include requirements for material properties, process parameters, and testing methods.

    Looking to the future, there are several areas where further research is needed to fully realize the potential of MAM in the mobility industry. One area is the development of new materials that are specifically designed for the MAM process. These materials could offer improved properties over traditional materials and enable the production of parts with even greater complexity.

    Another area is the development of in-process monitoring and control systems for the MAM process. These systems could help identify defects and deviations in real-time, allowing for immediate corrective action. This could help improve the quality and consistency of MAM parts and reduce the need for post-processing.

    In conclusion, determining design properties for metal additive manufacturing in the mobility industry is a complex and challenging task. However, with the right approach and testing methods, it is possible to develop parts that meet the stringent requirements of the industry. As MAM continues to mature and gain wider acceptance, it will become increasingly important for product teams to understand the unique challenges and opportunities presented by this technology. By doing so, they can unlock the full potential of MAM to produce lightweight, complex parts that offer significant benefits in terms of cost, lead time, and performance.

  • Nano Dimension’s Admaflex130 3D Printer Installed at NASA’s Marshall Space Flight Center for Sodium-Ion Battery Project

    Nano Dimension’s Admaflex130 3D Printer Installed at NASA’s Marshall Space Flight Center for Sodium-Ion Battery Project

    The landscape of 3D printing is in a perpetual state of evolution, and with each new advancement comes a wave of thrilling innovations. One such breakthrough that has captured the imagination of tech enthusiasts worldwide is the recent announcement that Nano Dimension has installed its state-of-the-art 3D printing system at NASA’s Marshall Space Flight Center. The system will be an integral component of a project aimed at 3D printing sodium-ion batteries, and Nano Dimension’s printer will play a pivotal role in ensuring the project’s success.

    Nano Dimension is a leading purveyor of cutting-edge 3D printing technology, specializing in Additively Manufactured Electronics and multi-dimensional polymer, metal & ceramic Additive Manufacturing 3D printers. The Admaflex130, which is the printer in question, is an outstanding product that was acquired in July 2022 from Admatec Europe B.V. This remarkable device possesses the capacity to produce a wide variety of materials, including ceramics and metals, with an astonishing degree of precision. Its Digital Light Processing (DLP) technology makes it ideal for research and development projects and 24/7 digital serial production of functional parts requiring complex geometries, high resolution, fine details, and smooth surface finishes, while maintaining exceptional material properties.

    What sets the Admaflex130 apart from the crowd is its unparalleled flexibility, allowing users to design bespoke materials and customize all printing parameters. This versatility is especially vital in research projects such as the one currently being undertaken at NASA. The efficacy of the project is contingent on the ability to print the sodium-ion batteries with exactitude, and the Admaflex130’s capacity for high-precision printing will undoubtedly prove invaluable.

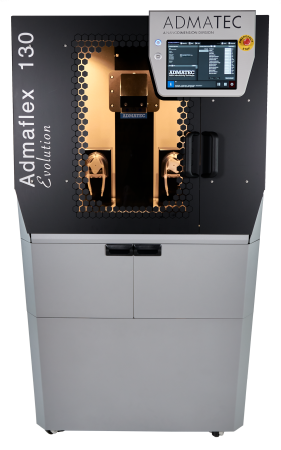

    Admaflex130 – Nano Dimension

    The installation of Nano Dimension’s 3D printer at NASA’s Marshall Space Flight Center represents a significant milestone in the 3D printing industry. It speaks volumes about the printer’s reliability and quality, and NASA’s decision to trust it implicitly is a ringing endorsement of its capabilities. It also underscores the growing importance of 3D printing in research and development projects, particularly within the aerospace industry.

    Yoav Stern, Chairman and Chief Executive Officer of Nano Dimension, expressed his delight at the installation, saying, “It is difficult to imagine collaborating with an organization that is pushing the envelope of space exploration as comprehensively as NASA. We are immensely proud that they have chosen the Admaflex130 from Nano Dimension. Our team took a risk in developing a printer that could print multiple materials while maintaining open parameter settings, and they achieved remarkable success. We are confident that this system will empower NASA’s pioneering leaders to manufacture innovative applications. And who knows? Perhaps one day soon, we will see one such application making its way to Mars.”

    The installation of Nano Dimension’s 3D printing system at NASA’s Marshall Space Flight Center marks a turning point in the aerospace industry’s use of 3D printing technology. 3D printing has the potential to revolutionize the manufacturing process of various aerospace components, including engine parts, turbine blades, and even entire rocket engines. Moreover, 3D printing technology can help reduce the weight of these components, a crucial consideration for spaceflight, as every gram counts.

    NASA has been using 3D printing technology to manufacture parts for its spacecraft since the 1990s, but with recent advancements, we are only now beginning to see the technology’s true potential. The installation of Nano Dimension’s 3D printing system at NASA’s Marshall Space Flight Center is just one example of how 3D printing technology is being used to push the boundaries of what is possible in space exploration. With this cutting-edge technology, NASA can now rapidly produce complex parts that would have been difficult or impossible to manufacture using traditional methods. This not only saves time and money, but also enables NASA to create custom parts on-demand, reducing the need for large inventories of spare parts. Furthermore, 3D printing technology allows NASA to experiment with new designs and materials, which could lead to lighter, stronger, and more efficient spacecraft in the future. As the technology continues to evolve, we can expect to see even more exciting applications of 3D printing in space exploration and beyond.

    via Nano Dimension

  • Process Selection for Metal Additive Manufacturing

    Process Selection for Metal Additive Manufacturing

    In the early days of laser powder bed fusion (L-PBF) additive manufacturing (AM), there were significant limitations to the build size of the machines. However, as with all technology, advancements have been made, and machine builders have addressed that drawback by introducing larger L-PBF machines with expansive build volumes. This has opened up new possibilities for manufacturers, as larger machines mean larger parts can be produced in a single print.

    However, as these machines grow, their size capability approaches that of directed energy deposition (DED) machines. Concurrently, DED machines have gained additional axes of motion which enable increasingly complex part geometries—resulting in near-overlap in capabilities at the large end of the L-PBF build size. This convergence of capabilities between L-PBF and DED machines has led to a blurring of the lines of demarcation between different processes.

    Furthermore, competing technologies, such as binder jet AM and metal material extrusion, have also increased in capability, albeit with different starting points. Binder jet AM, for example, is a process that involves jetting a binder onto a bed of powder particles, which are then sintered together to create a solid part. Metal material extrusion, on the other hand, involves the extrusion of a continuous strand of metal through a nozzle, which is then melted and deposited layer by layer to create the desired part. These competing technologies offer their own unique advantages and disadvantages, but as with L-PBF and DED, the lines between them are becoming blurred as they advance in capability.

    This is why it is important for product teams to carefully consider the strengths and weaknesses of each process when selecting the most appropriate one for their application. The approach outlined in Internal Boundaries of Metal Additive Manufacturing: Future Process Selection provides a framework for doing just that.

    The first step in this approach is to define the requirements of the application. This involves considering factors such as part size, complexity, and material properties. For example, if the part needs to be large and structurally sound, a process like DED or metal material extrusion may be more appropriate than L-PBF. Conversely, if the part is small and intricate, L-PBF may be the better choice.

    II International Conference on Simulation for Additive Manufacturing – Sim-AM 2019” by unipavia is licensed under CC BY 2.0.

    Once the requirements have been defined, the next step is to assess the strengths and weaknesses of each process in relation to those requirements. This involves considering factors such as build volume, surface finish, and material properties. For example, L-PBF is known for its high surface finish and ability to produce parts with fine detail, while DED is better suited for producing large, structurally sound parts with rougher surface finishes.

    The third step is to evaluate the economic viability of each process. This involves considering factors such as equipment cost, material cost, and production time. For example, L-PBF may be more expensive than metal material extrusion in terms of equipment cost, but it may offer a faster production time, making it more economical for certain applications.

    TechnologySpeedCostResolutionMaterial PropertiesInvestment NeedProsCons
    Laser Powder Bed Fusion (L-PBF)MediumHighHighHighHighHigh surface finish, good for intricate partsLimited build volume, slow production time, high equipment cost
    Directed Energy Deposition (DED) – PowderMediumHighLowMediumHighLarge build volume, strong and dense partsRough surface finish, limited resolution, high equipment cost
    Binder Jet Additive Manufacturing (BJAM)FastLowLowMediumMediumFast production time, good for large partsLimited material properties, may require additional post-processing
    Sheet LaminationFastLowMediumLowHighLow equipment cost, can use various materialsLimited resolution, limited material properties
    Directed Energy Deposition (DED) – Wire-fedFastHighLowMediumMediumLarge build volume, good for repairing or adding material to existing partsLimited resolution, rough surface finish
    Electron Beam Melting (EBM)MediumHighHighHighHighHigh material purity, strong and dense partsLimited resolution, high equipment cost

    The final step is to weigh all of the factors considered in the previous steps and make a decision based on the overall suitability of each process for the application. This involves considering factors such as part performance, cost, and production time. For example, if the part needs to be large and structurally sound, DED may be the best choice despite its longer production time and higher equipment cost. Conversely, if the part is small and intricate, L-PBF may be the most economical choice despite its higher material cost.

    It is important to note that the approach outlined on this post is not a one-size-fits-all solution. Each application will have its own unique set of requirements, and the most appropriate process will depend on a variety of factors. However, by following this approach, product teams.
